LISSMAC SBM-M B2: Oxide Removal Top & Bottom in a Single Pass

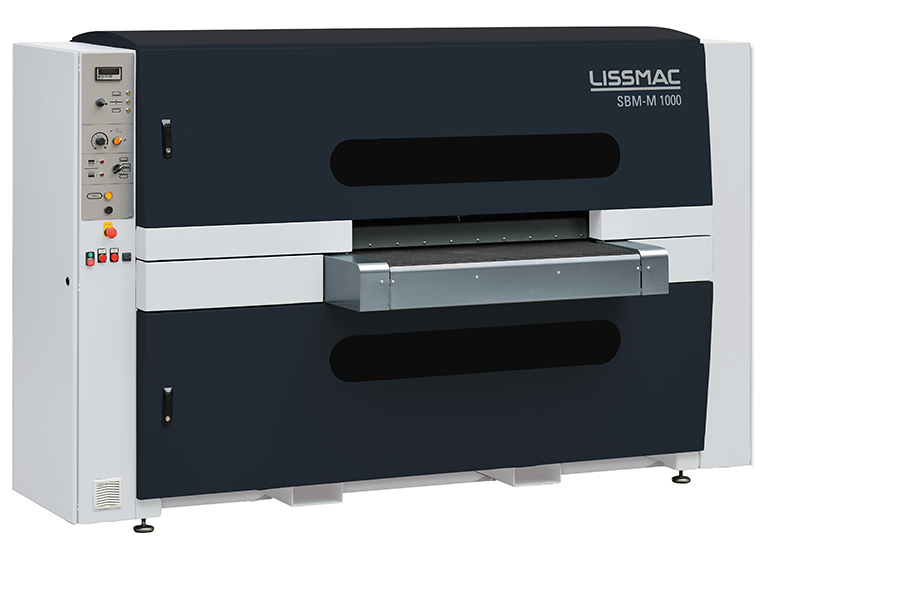

SBM-M B2 Oxide Removal Machine
Oxide removal in one single pass on all inside and outside edges of sheet and plate up to 20 mm material thickness
No need to turn sheets over and running them through the machine again
Up to 60 % work time savings compared to one-side processing brush machines
Highest quality during subsequent processing or finishing
Simultaneous brushing of interior and exterior contours
All sharp edges blended
Improved surface quality from removal of rust, scale and dirt
Protective oil film remains intact
The cross-machining principle guarantees optimum tool utilisation over the entire working width.
Simple, intuitive operation
Faster and simpler tool change within just a few minutes
Modular and compact in modern machine design - smaller footprint
Improved work environment - Reduction of dust, dirt and noise
Options: Conveyor Technology; Handling Systems, Automation; Custom Solutions
Specifications
|
working width max. |
40" or 60" |
|
workable material thickness |
0.02"-0.79" |
|
voltage |
480 V / 60 Hz |
|
total power |
37 A |
|
total current consumption |
23 kW |
|
infinitely variable feed speed |
0-13 ft/min |
|
adjustment of material thickness |
electric |
|
adjustment of tools |
electric |
|
weight approx. |
4,630 / 5,070 lbs) |
| dimensions (W/D/H ) approx. | 103/56/71 inch or 123/56/71 inch |
