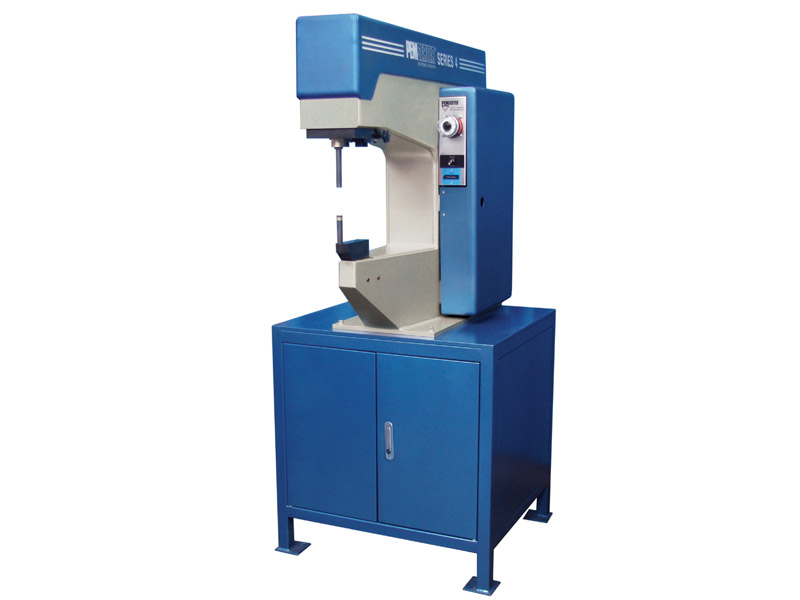

PEMSERTER® Series 4
The PEMSERTER® Series 4® insertion machine is totally pneumatic providing short cycle time for increased productivity and 53.4 kN / 6 tons of force and a 45.7 cm / 18” throat depth which provides clearance for a variety of chassis configurations. It is designed to install self-clinching fasteners in size M2 / #0 thru M6.

Features and Benefits
Insertion force adjustable from 1.8 to 53.4 kN / 400  to 12,000 lbs..
Pneumatic power for speed, consistency, and simple operation. Requires shop air only.
Integral point-of-operation safety.
Adjustable positive ram stop.

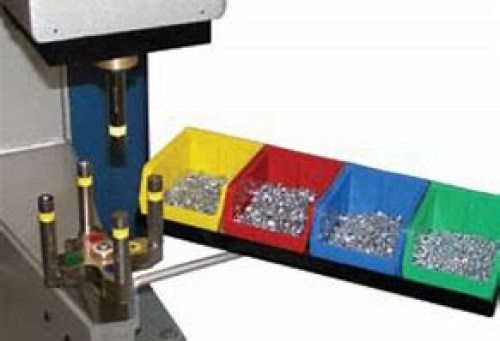

Large parts tray with dividers.

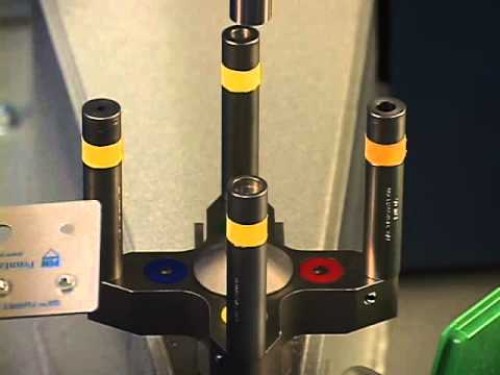

Rapid tooling changeover, perfect for short production runs.
Laser pointer, stroke counter, and lockable cabinet for tools and accessories storage.
One-year parts warranty and two-year limited warranty on pneumatic components.

Specifications
