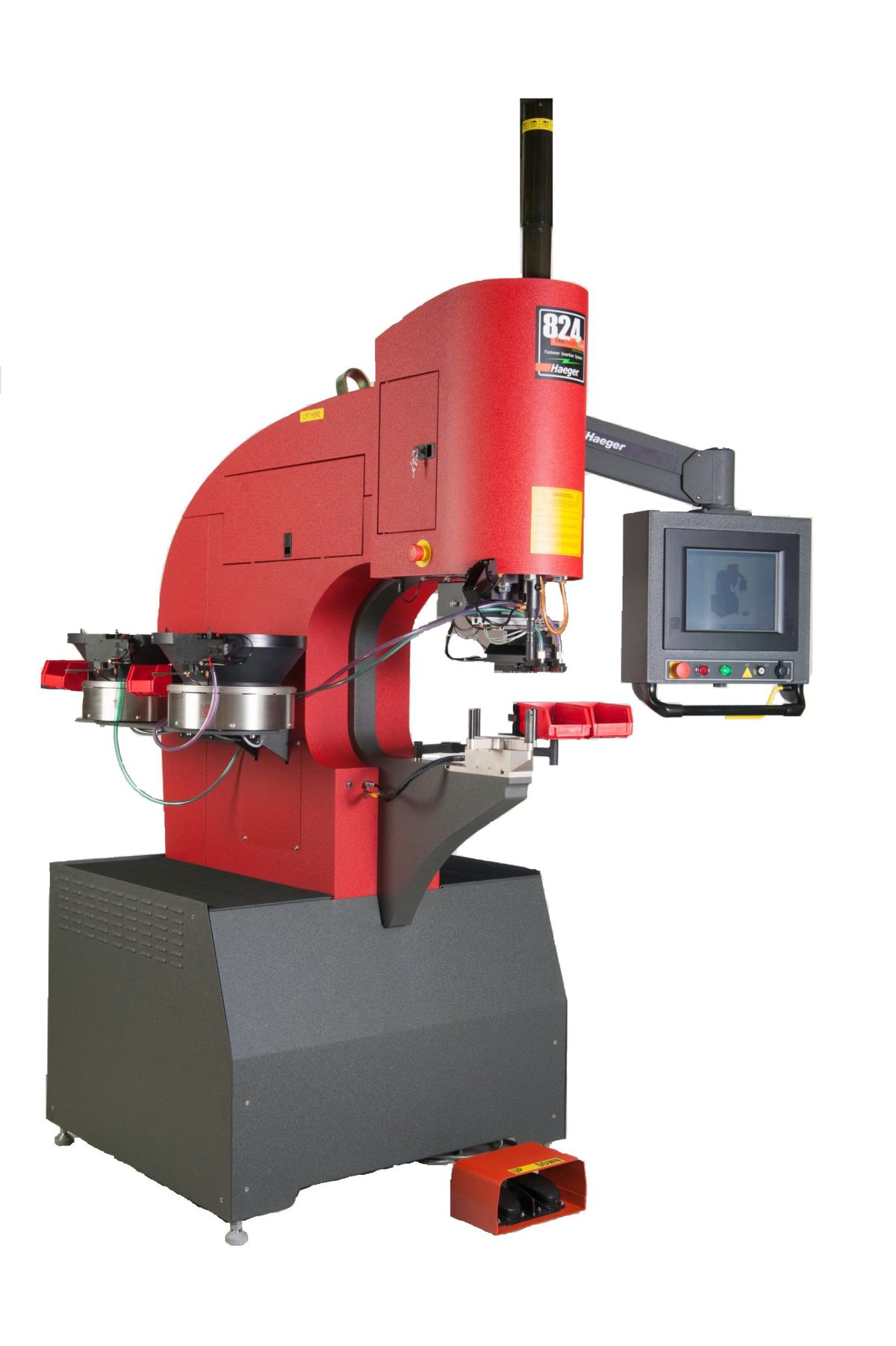

Haeger 824 One Touch Lite
The new 824 OneTouch 5e LITE offers all the advantages of the 824 WindowTouch 5e with a second Automatic Upper Station which changes the two upper tools and insertion stations automatically.
Base price
Description
Throat Depth: 24”
Stroke Length: Adjustable 0 to 8.5”
Electrical: 208 to 480V 3 phase
Motor: 5 HP
Oil Tank Reservoir 22 gallons
Speed: Up to 1400 insertions per hour
Repeatability: +/- 2% of force setting
Footprint (LxWxH) 59” x 38” x 94”
Fastener Range: .256 to 1/2” (M2 to M10)
Clinching Capability: 22 gage to 11 gage Steel (combined thickness)
Creating Hardware Insertion Profit Centers
The new 824 OneTouch 5e LITE offers all the advantages of the 824 WindowTouch 4e with a second Automatic Upper Station which changes the two upper tools and insertion stations automatically.
Combine the full versatility of Haeger’s 824 WindowTouch 4e with the productivity of the 824 OneTouch 5e.
Enjoy fastener detection and stud and standoff length detection on 2 stations.
Enjoy fastener detection and stud and standoff length detection on 2 stations.

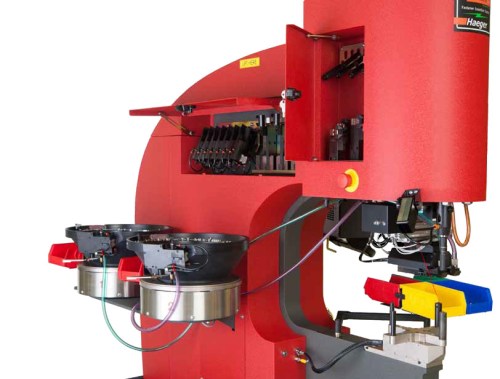

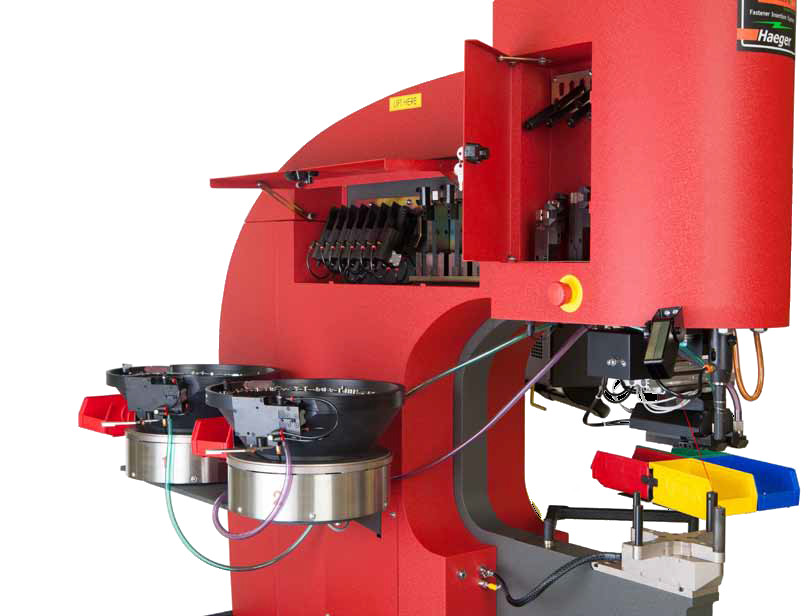

The dual station Upper Tool changer features integrated connectors allowing for a 10 second changeover to any other tooling setup.
Force Range Adjustable 1000 lbs. to 16000 lbs. Optional 20000 lbs.
Specifications
Throat Depth: 24”
Stroke Length: Adjustable 0 to 8.5”
Electrical: 208 to 480V 3 phase
Motor: 5 HP
Oil Tank Reservoir 22 gallons
Speed: Up to 1400 insertions per hour
Repeatability: +/- 2% of force setting
Footprint (LxWxH) 59” x 38” x 94”
Fastener Range: .256 to 1/2” (M2 to M10)
Clinching Capability: 22 gage to 11 gage Steel (combined thickness)
