HABERLE Model H 90:

With HSS 14 "Saw Blade for compound angel cuts, notching, angle cuts, slitting, for tubes, sections or channels of steel, stainless steel and nonferrous metals. Sawhead tilts 0° - 90°

Features:

2-PIECE SAFETY GUARD

Aluminum covers the whole saw blade in rest position.
Multiple latch linkage with quick release knob for easy and fast saw blade replacement without removing the guards.

PRECISION WORM & WHEEL DRIVE

Hardened and ground worm shaft, special bronze worm wheel and a main spindle of 2.7" dia. running in oil.
Elastic coupling between motor and gears.

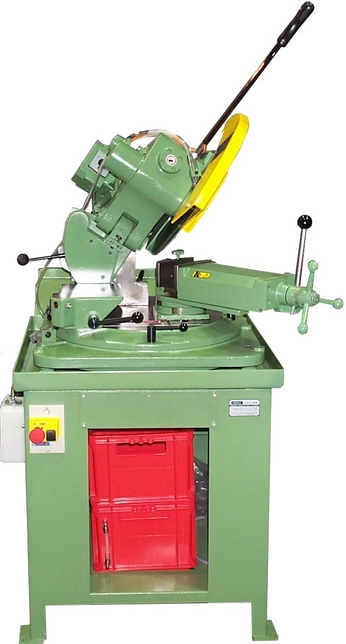

TILTING SAW HEAD

Allows vertical mitering 0º-90º to the right side.
The vise in place, it allows compound angles with tilted head 0º- 45º' and mitered vise 0º'- 60º according to the 1º- graduations.
Quick adjustment by clamp levers without tools.
Safe handling of the rigid moving head.
Large tilting block for exact angle cuts.
Double yoke pivot, adjustable.

MITERING & MOVING VISE

Allows horizontal angle cuts 0º- 60º.
Positive lock by spring-loaded pin in straight and 45º position.
To meet the total cutting range of the saw blade, the mitering vise can be moved backwards.
For notching and slitting cuts, the vise can be removed and placed to the left side.

NOTCHING CUTS WITH 90° TILTED HEAD

The vise placed to the left side, the saw head can be tilted vertical up to 90º for notching cuts into channels and T-size profiles.
The spring-loaded saw head movement enables exact cuts.

SLITTING CUTS IN DOOR FRAMES

The vise replaced to the left side, it allows also parallel slits by the positive 90º locking.
All adjustments are done by clamp levers without tools.

MATERIAL SUPPORT BLOCK

On the left side of the table, supports the cut-off piece for safe straight and mitre cuts.
The block can be moved when the tilted head makes it necessary and removed to replace the vise to the left side.

SPECIAL APPLICATIONS

Total height between table and saw blade is 8.3" and allows various clamping devices for many purposes, usually done on a milling machine, like slitting of bolts etc.

ADJUSTABLE TURN TABLE

Allows always the same direction of the material feed-in.

WATER COOLANT SYSTEM

Large coolant tank and chip container in the base.

Reliable diaphragm coolant pump for water emulsions.

{aricsvtable file="csv/haberleh90.csv"}{aricsvtablecolumnspan row="0" startIndex="0" endIndex="3"}{/aricsvtable}

Optional: Low-consumption cutting oil lubricating system or air operated oil spray system available.

3-phase (220 V, 460 V, or 575 V), 2 speed motor. Main switch with motor protection.

AIR OPERATED VISE SYSTEM

Vise cylinder 6.3" dia., automatic stroke 0.3", air pilot valve, front regulator and filter-lubricator.
Clamping is actuated when the saw head is moved from rest position by operating handle.
Necessary air supply: 90 PSI.

SAW BLADE SIZE

H.S.S. 14"; 13"; 12".
Segmental blades are not recommended, they can overstress the machine.
Use the right rake angle: 16º-18º for steel and stainless steel, 22º-25º for soft aluminum alloys.

SAW BLADE SPEED AND MOTOR POWER

60 Hz: 54/108 RPM, 2.2/2.7 kW (3.0/3.6 HP)
60 Hz: 27/54 RPM, 1.2/2.4 kW (1.7/3.3 HP)
