HABERLE Model H 350

HSS Saw Blade 14" For workshops and full-time production, cuts steel, stainless steel, nonferrous metals.

MODEL H 350 Version A

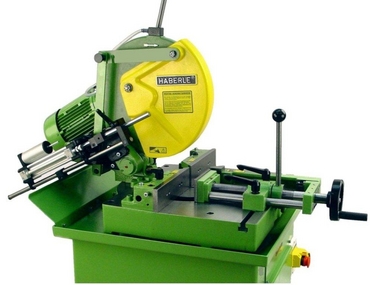

Doublegrip mechanical quick-action vise with clamp levers for quick movement to the left or right side of the sawblade. Optional second mechanical vise available if needed.

MODEL H 350 Version B

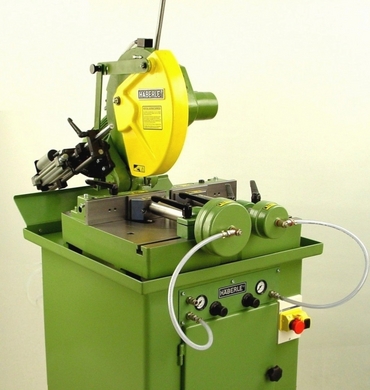

Automatic double air vise system with cylinder stroke 8 mm (3/8"), pilot valve, front regulators and filterlubricator.
Clamping is actuated when the saw head is moved from rest position by operator's handle.
Air supply: 90 PSI.

MODEL H 350/T

For large straight cuts
With additional T-shaped slots
With double vise
Special machine table for straight cuts, with 4 additional T-shaped slots and replaceable rear jaw plates.
For flat cableway sections or for special clamp devices to cut curved exhaust pipes.

Features:

Water coolant system with reliable high volume diaphragm coolant pump.

Coolant supply to both sides of the sawblade. Removable 5 gal. coolant reservoir, separate 5 gal. swarf box.

Quick release hose connection, fluid stop cock.

2-piece safety guard closes completely when the saw head is in rest position.

Operator can not touch the sawblade. Double latch linkage for free guard movement when the head is lifted to effect the cut, outer guard remains between operator and sawblade.

Quick release by spring button for easy sawblade replacement.

Oversized precision gear drive with elastic safety coupling, hardened and ground worm shaft, worm wheel of special bronze and 2.75" dia. main spindle running in oil.

Designed and built for full-time operation.

Sawblade H.S.S. max. 14" with 2 drive holes.

Do not use segmental blades.

Double yoke pivot with hardened and ground shaft, adjustable on both sides.

Flat machine table with built-in precision swivel and clearly marked mitering scale.

Vise remains stationary, saw head miters to any position within 45°.

Positive locking by springloaded pin at O° and 45°. Mitering table is clamped from top by clamp lever.

Jaw plates replaceable for profiled jaws.

Standard rear plates movable close to the sawblade for safe cuts of thin workpieces.

Options

Double-grip quick action vise

For burr-free straight cuts, recommended when cutting small parts.

Adjustable right grip arm, vise screw with additional rear close-tolerance guide.

Second mechanical quick action vise recommended on machines of version A, allows burrfree straight and miter cuts.

Fluid spray lubricator system for pure oil lubrication at extremely low oil consumption.

Length stops
Standard version: 40" ungraduated with quick release handles.
Hinged 2-piece slider to touch any position of the workpiece.

Sawblade Speeds

Standard 53/106 RPM for steel & non-ferrous metals.
Optional 26.5/53/106 RPM also for stainless steel.
