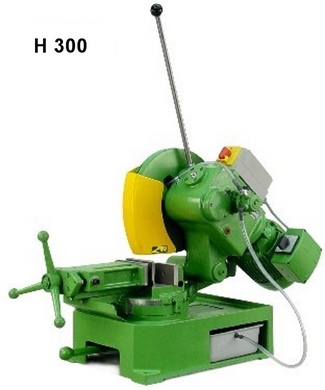

Haberle H 300 Features

Drive Motor

60 Hz:Standard 3-phase, 1.7/2.5 HP, 1700/3400 RPM

Drive Gear Unit

Robust double-supported worm shaft, heavy construction sawblade drive spindle with tough texture bronze wheel.

Sawblade Speeds

Standard: 52 / 104 RPM

Clamping Unit

The strong double-grip vise allows burrIess straight cuts by clamping also the cut-off piece.
For mitering cuts, the right arm can be taken off if necessary. Optional: Vise with quick-action lever.

Mitering 0°- 45°

The saw head turns to the left for mitering cuts.
Engraved scale 0°- 45° by 1° steps. Adjustable table clamp [ever.

Air Clamping Equipment (Version B)

Optional automatically clamping vise, controlled by an air valve behind the saw head.
Complete with air regulator and lubricator unit.

Vise Jaw Plates

Replaceable against specially profiled jaws if required.
The rear plates can be moved to close the cutting slot for mitering cuts whenever thin material is to be cut.

Coolant Equipment

Standard with diaphragm pump, fluid regulator and handy pull-out coolant tray for perfect circulation.

Safety Sawblade Guard

Swing guided double guard of cast aluminum, swings forward without jamming vise or material and closes in rest position for safe operation.
