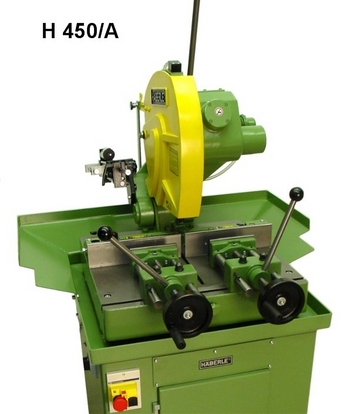

Haberle H450 A / H450 B

Top of the line German Mfg. Metal cutting cold saw machine. Haberle H450 18" circular cold saw blades. 6.3"" round tube or pipe cutting capacity, 5" x 5" square pipe or tube at 90 degree or 45 degree cut capacity
Base price

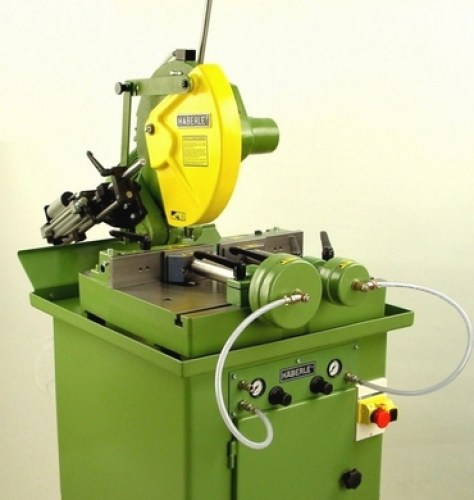

Haberle Pnuematic Clamping B series

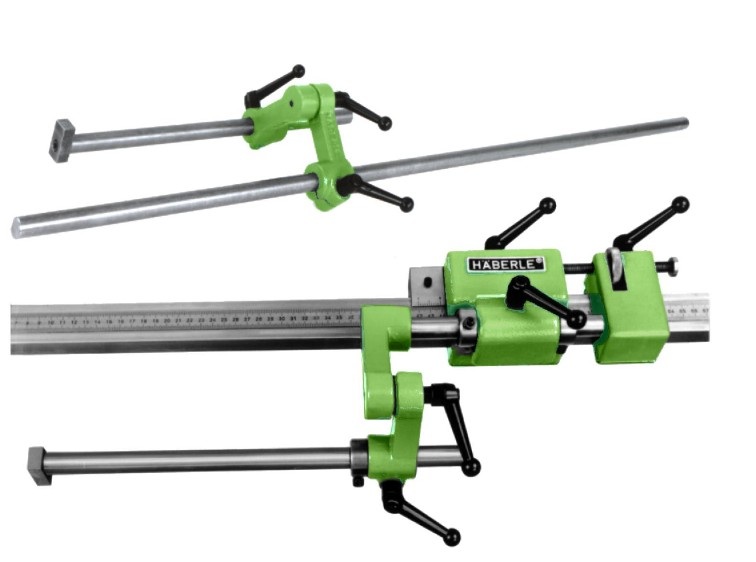

Haberle Non Digital Length Stop

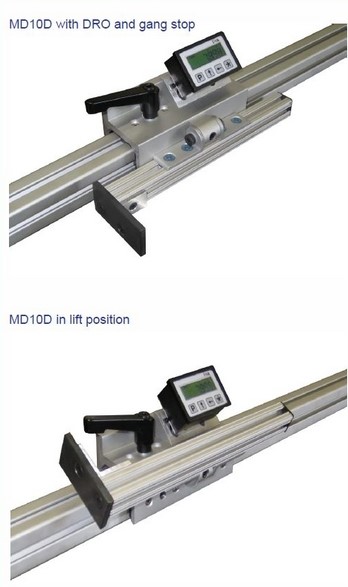

Haberle Digital Read Out Option
Description

Haberle H450

Hand-operated High Quality Cold Saw
Heavy duty worm &wheel drive with hardened and ground worm shaft and special bronze worm wheel, completely free from clearance, running in an oil bath.
Oversized main spindle for full-time operation, axial adjustable.

Sawblade Speeds

60 Cycle = 28/56 RPM.

Safety Guard System

The two-piece hinged safety guard made of cast aluminum cares for best operator's safety.
In rest position, it covers the sawblade completely and remains a short over the cutting area when swiveling the saw head.
Quick lift-up without tools for easy sawblade replacement.

Saw Head Pivot System

Rigid, double yoke pivot with hardened and ground shaft, adjustable on both sides.

Mitering Saw Head

Head easily miters within 45° to any position, with positive locking at 45°- 0°- 45°.
Mitering table is clamped from top. Workpiece remains stationary while head rotates.

Clamping System

Standard with two manual quick action vises (Version A), each movable and with exchangeable vise jaw plate.
Air operated automatic vise system (Version B) at extra price, with pilot valve behind the saw head for immediate clamping when the saw head is lifted from rest position, and with air filter-regulator-lubricator. Operating pressure: 90 PSI. Separate air regulator for each vise cylinder.

Water Coolant System

Coolant tank 40 Litres (10 Gal.); separate, removable chip container; powerful diaphragm pump driven by excentric bearing in the saw head; coolant supply to both sides of the sawblade.

Electric Equipment

3-phase 2-speed motor, 1.7/3.0 KW (2.2/4.0 HP) 60 C. Main switch with thermal overload protection.

Sawblades H.S.S.

17.5" for mild steel and non-ferrous metals.
16" for stainless steel at slow speed.
14" for steel solid material.

Standard Equipment

1 set of operating tools, 1 instruction booklet with parts list.

Optional Equipment

Length stop 40" ungraduated, various length stops with metric rule; top clamp manual or air operated; air vise system; downfeed restriction cylinder; semi-automatic version; sawblades, coolant fluid, roller carriers.
