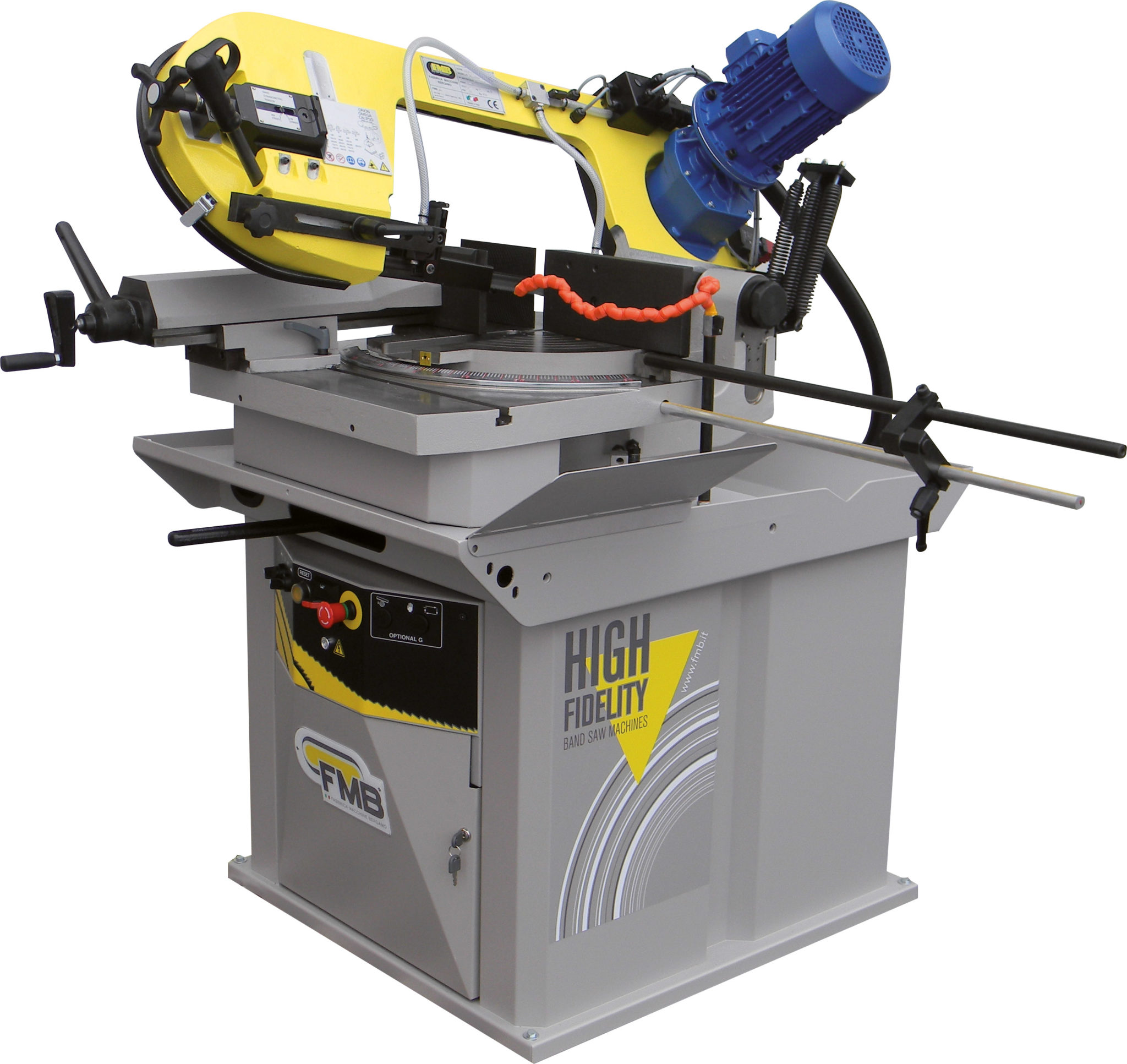

Pro DM Miter Series: ORION G
Up to 60-degree miter to the right and 45-degree miter to the left
9-1/2″ Round Cutting Capacity
Standard with Gravity Feed
Precision T-Slot for Vise Positioning

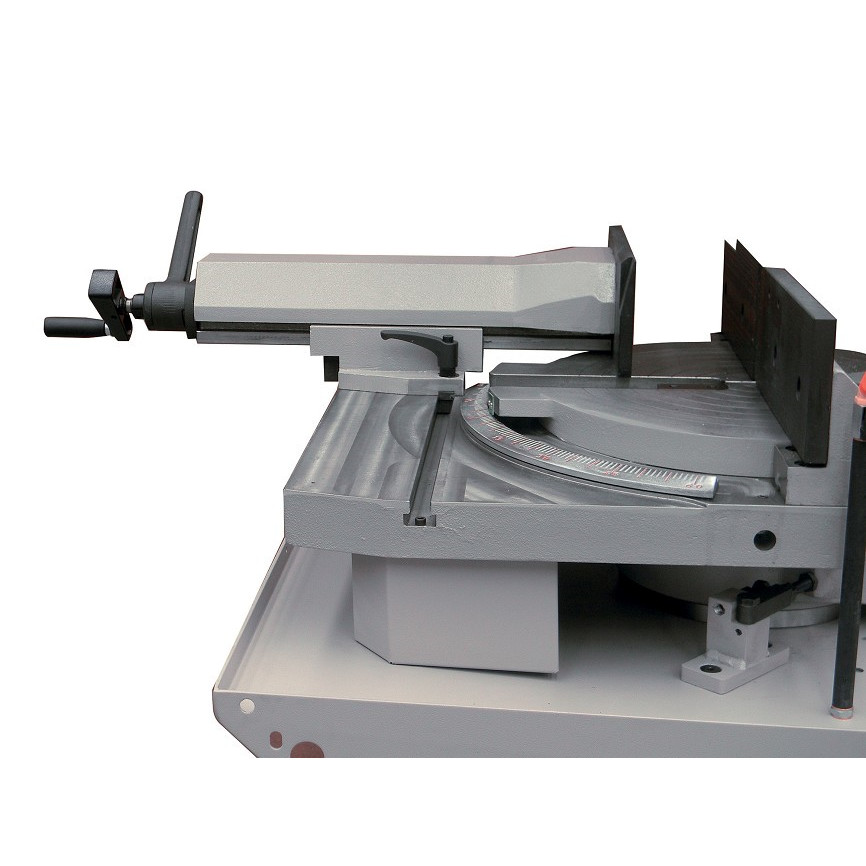

Removable vise allows for easy fixturing of special cuts
9-1/2″ Round Cutting Capacity
Standard with Gravity Feed
Precision T-Slot for Vise Positioning
Removable vise allows for easy fixturing of special cuts
Base price
Description
ORION G
Features

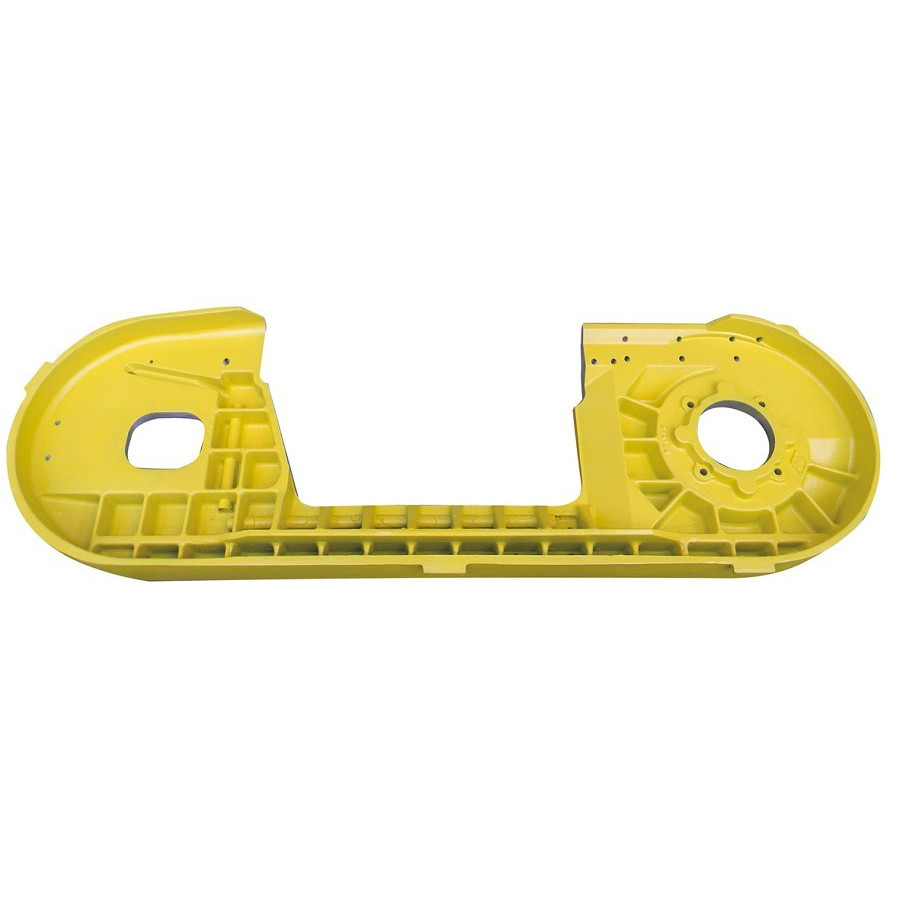

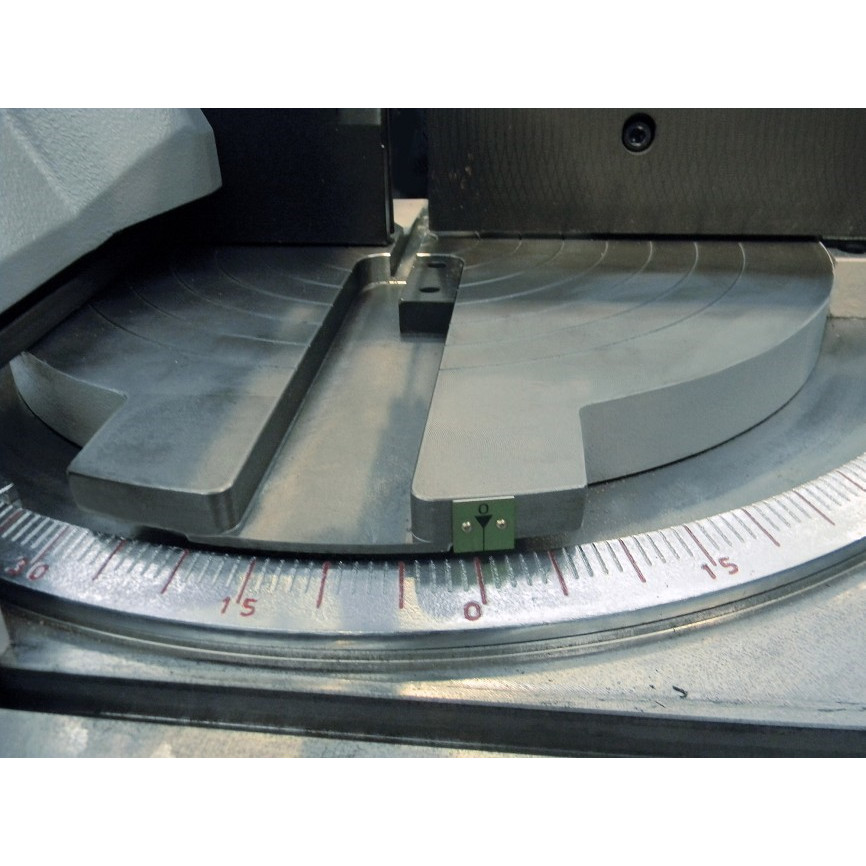

Swivel saw head with precision protractor
Miter 0 – 45 degree left and 0-60 degree right
Heavy duty machine base with locking cabinet
Quick acting clamp

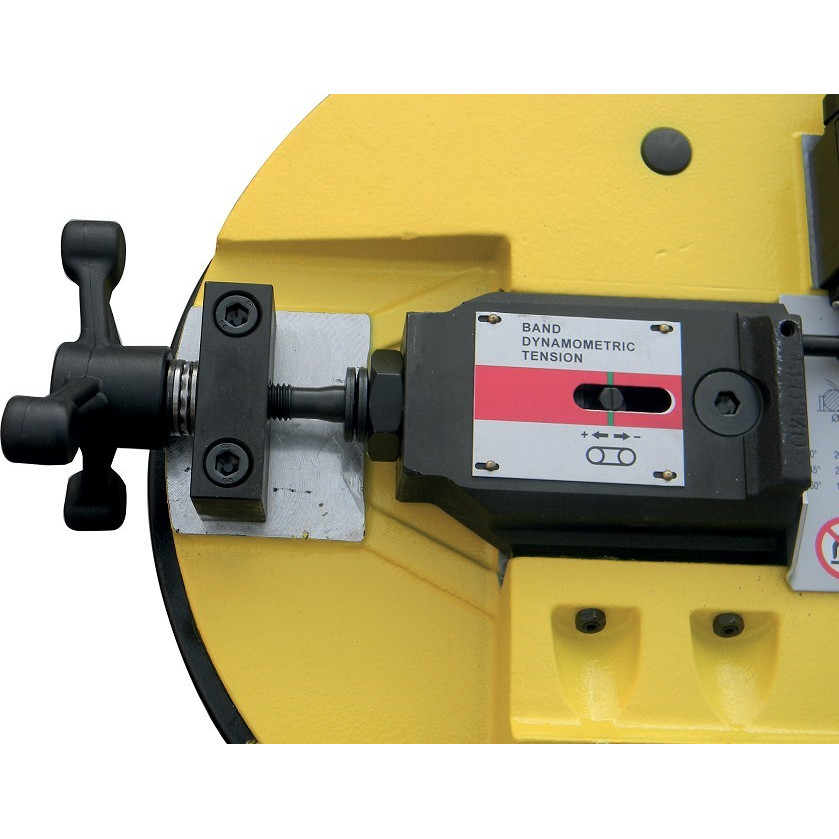

Mechanical blade tension with built in indicator
Precision carbide blade guides with roller guides
Length stop (23” long)
Saw drive via gear reducer with case hardened and ground helical gears

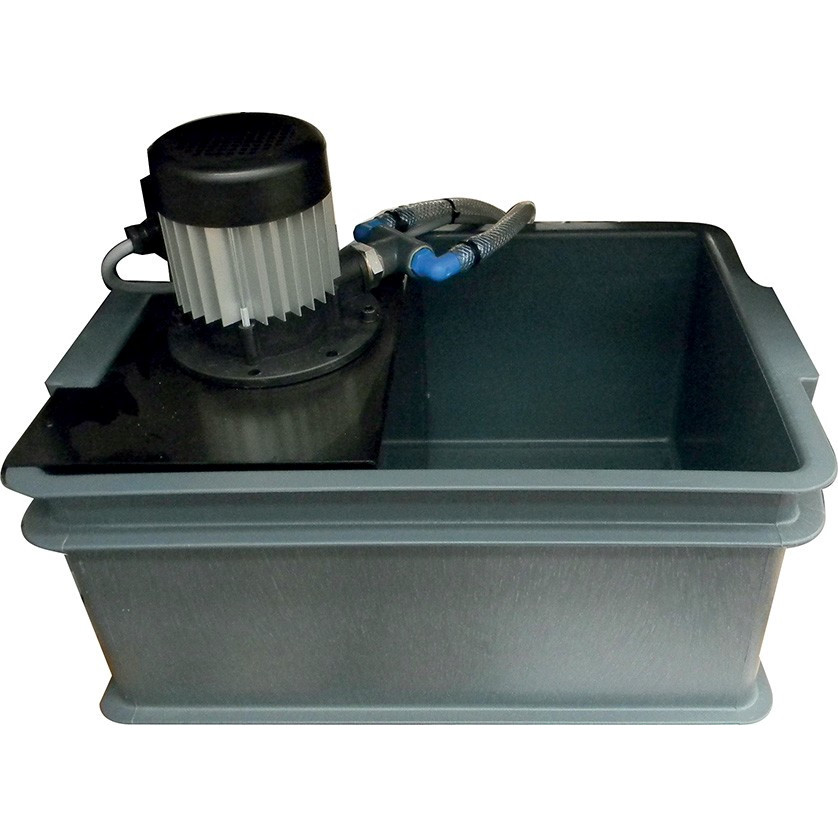

Flood coolant system
24 volt control voltage
2 speed motor
Specify voltage at the time of order (110/1ph, 220/3ph, 440/3ph)
One FMB cobalt band saw blade and operating manual
Specifications
| Cutting Capacity | O Degree | 45 Degree/Right | 60 Degree/Right | 45 Degree/Left |
| Round | 9-1/2″ | 6-7/8” | 4-1/3” | 6” |
| Rectangle A | 8” x 12” | 6-5/8” x 6-5/8” | 5-1/2” x 4” | 5” x 5-5/8” |
| Rectangle B | 9-1/2” x 10-5/8” | 9-3/8” x 6” | — | 9-3/8” x 2-1/2” |
| Square | 9-1/2” x 9-1/2” | 6-5/8” x 6-5/8” | 4” x 4” | 5-1/3” x 5-1/3” |
| Blade Size | 8’10” x 1” x .035” |
| Blade Speed | 115 and 230 FPM (110v/1PH is 1 Speed – 230 FPM) |
| Saw Motor Power | 1.75 HP |
| Voltages Available | 220v/3PH, 440v/3PH, 110v/1PH |
| Foot Print | 35” x 57” |
| Weight | 950 lbs. |
