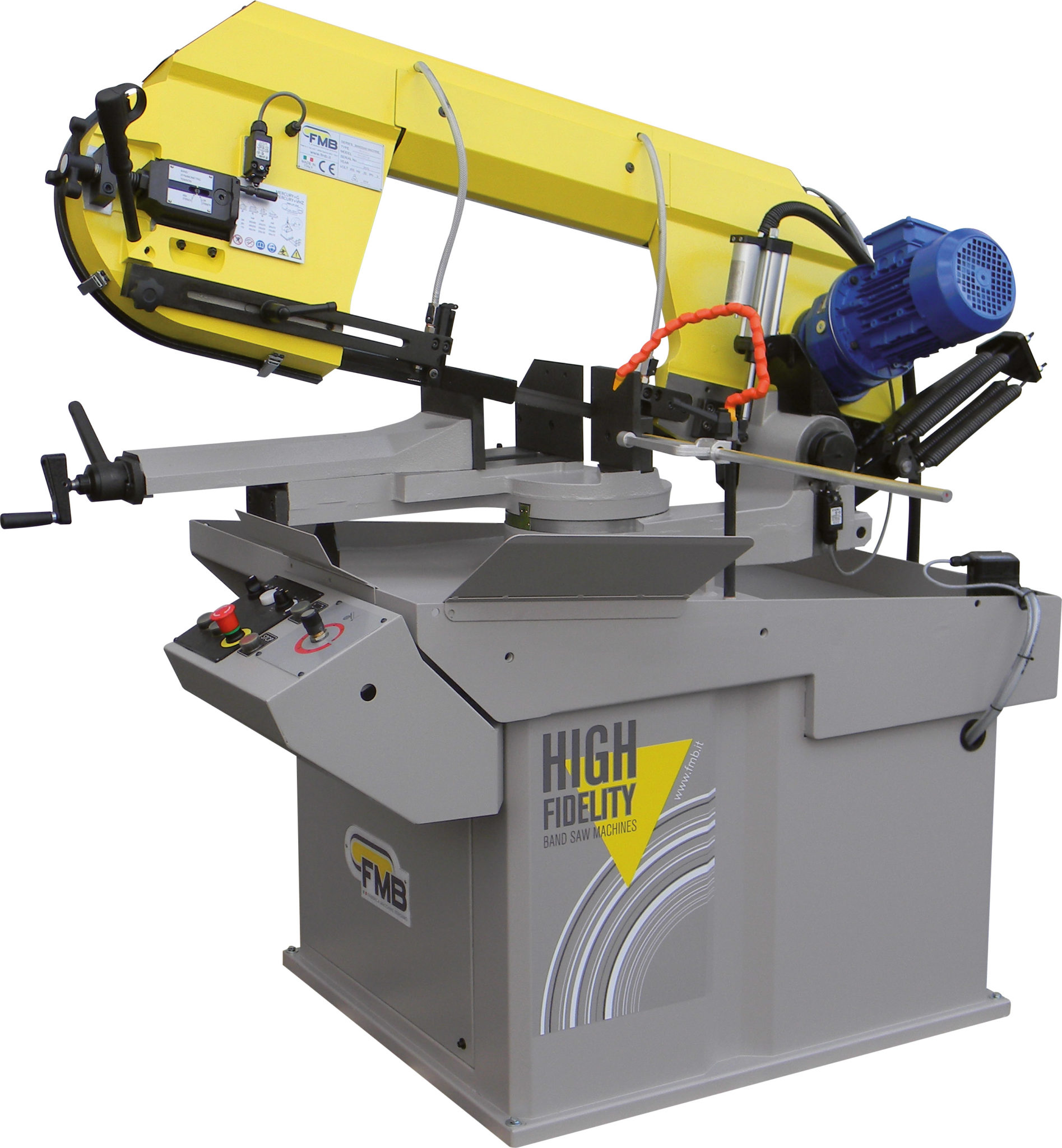

FMB Mercury GV

Standard Features & Equipment

Manual band saw machine to cut medium sized profiles and solid materials from 0° to 60° right.

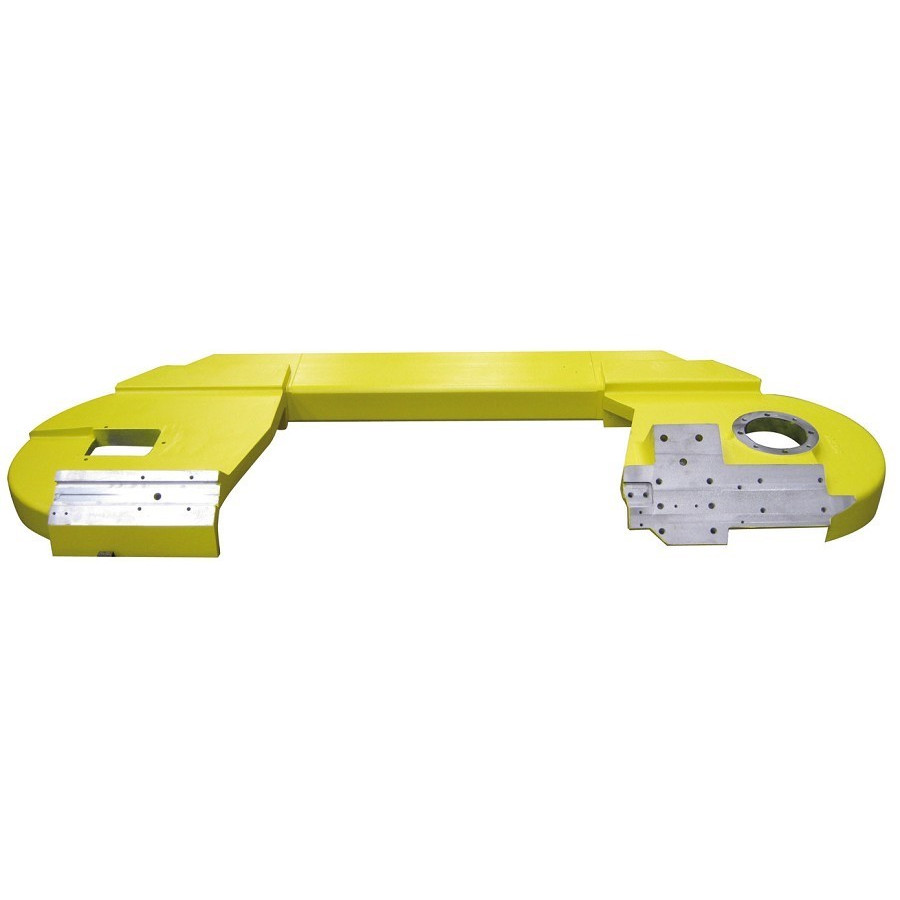

Head structure in 3 parts: special aluminum alloy, steel and cast iron.

Gravitational head descent system.

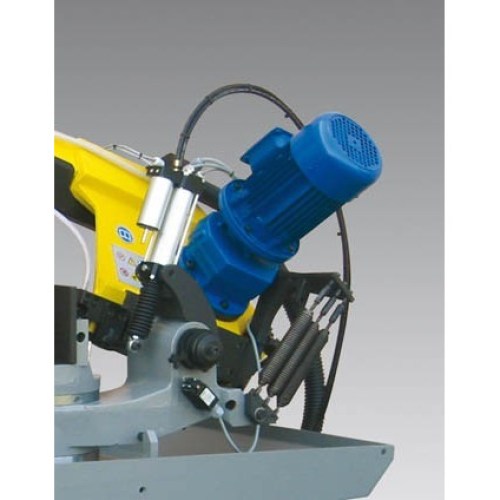

Reduction gear box with inclined grinded case hardened teeth lubricated with long lasting grease.

Front head descent adjustment valve.

Motor wheel fixing to a flange group with exact opposite conical bearings.

Adjustable blade guides with carbide inserts and guide bearings.

Blade cleaning idle brush easy to be adjusted and handy.

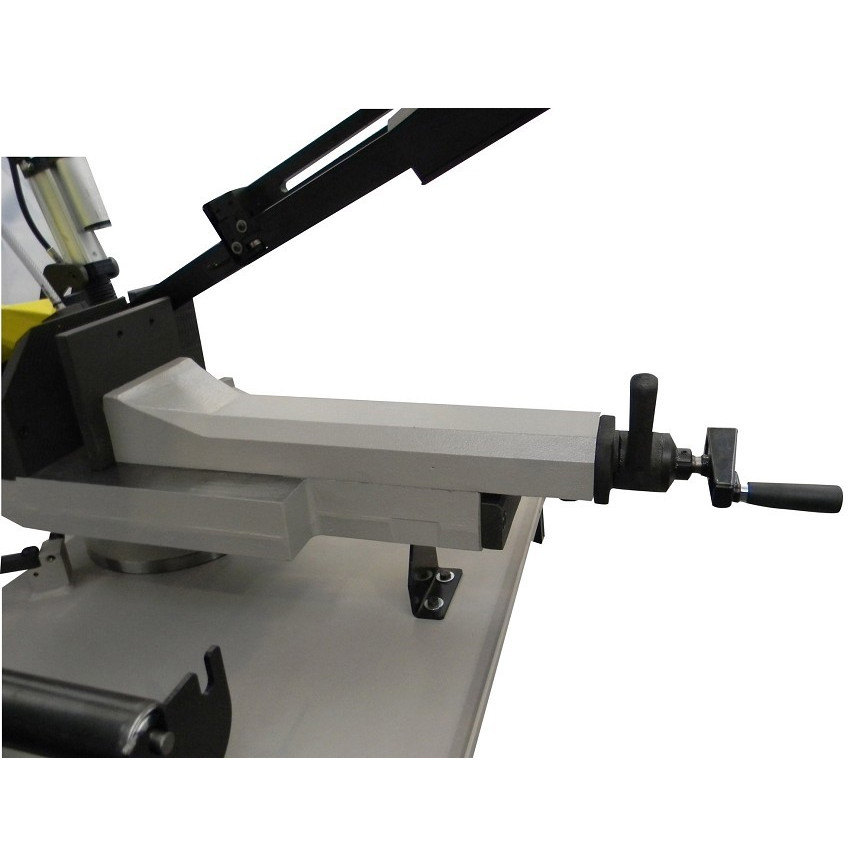

Material clamping vice with manual positioning and equipped with a fast clamping system.

Ergonomic positioned panel controls.

Head rotation angle stop at 0°, 45° and 60°.

Graduated scale for angle degrees measuring and heavy-duty locking lever.

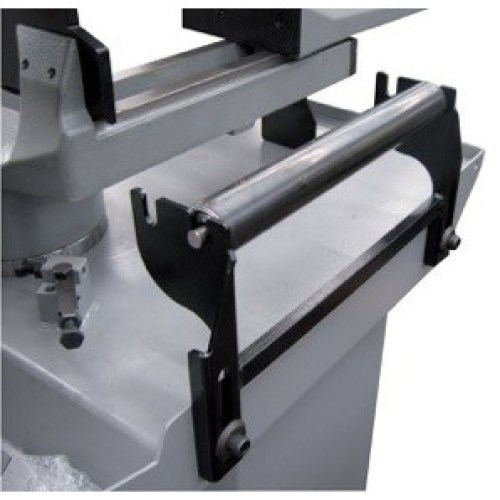

Loading side support roller with two-position very resistant stand.

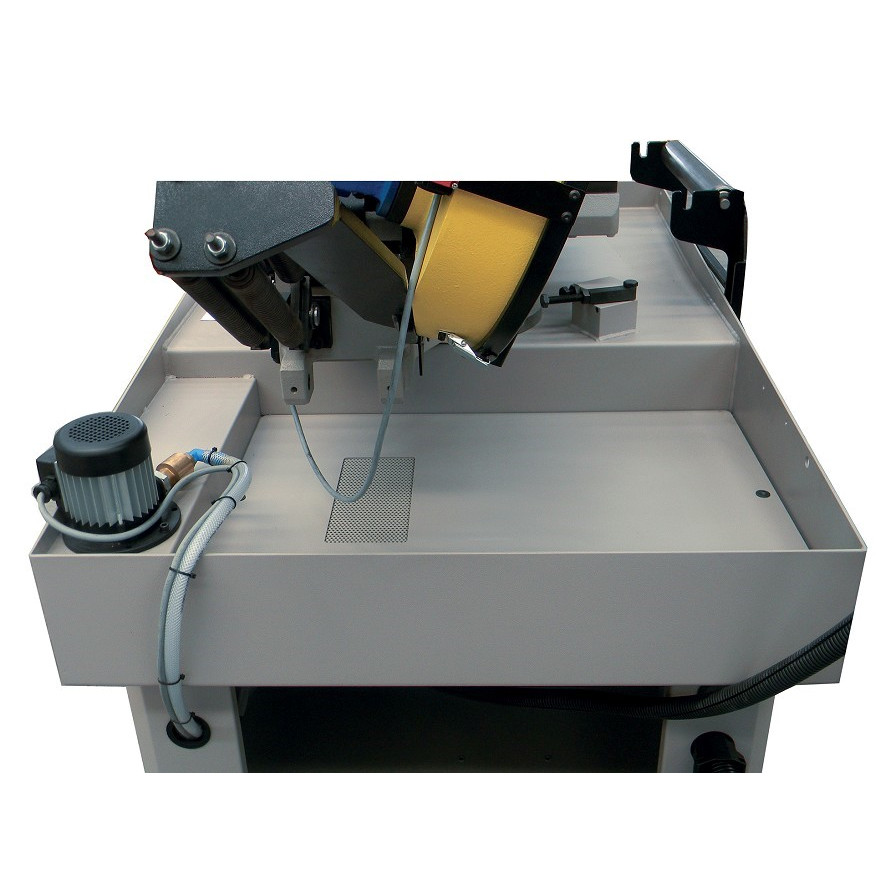

Electric coolant pump with a feed nozzle placed on each blade guide arm.

24 VAV auxiliary tension electric cabinet, with lockable main switch  and electric drives.

Line voltage: 220V/60Hz/3ph – 440V/60Hz / 3ph.

Specifications
