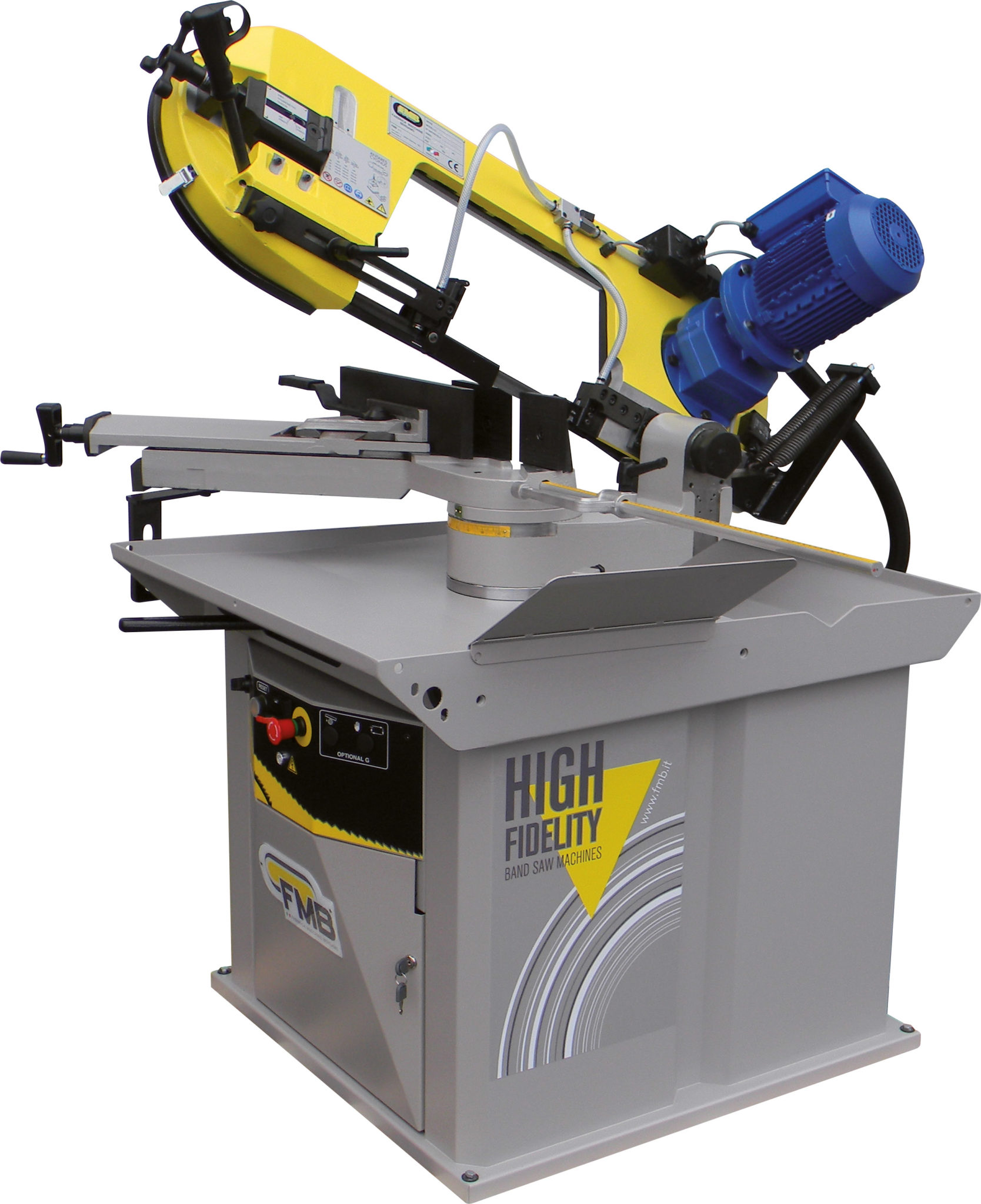

Pro DM Miter Series: ANTARES
• Up to 60-degree miter to the right and 45-degree miter to the left
• 7-7/8" Round Cutting Capacity
• Manual Pull Down
• Vise is stationary for left and right miters
• 7-7/8" Round Cutting Capacity
• Manual Pull Down
• Vise is stationary for left and right miters
Base price
Description
ANTARES
Features
Swivel sawhead with a precision protractor
Miter 0 – 45 degree left and 0-60 degree right
Heavy duty machine base with locking cabinet
Quick acting clamp
Mechanical blade tension with built in indicator
Precision carbide blade guides with roller guides
Length stop (23” long)
Saw drive via gear reductor with case hardened and ground helical gears
Flood coolant system
24 volt control voltage
2 speed motor
Specify voltage at time of order (110/1HP, 220/3HP, 440/3HP)
One FMB cobalt bandsaw blade and operating manual
Specifications
| Cutting Capacity | 0 Degree | 45 Degree/Right | 60 Degree/Right | 45 Degree/Left |
| Round | 7-7/8" | 7" | 4" | 5-1/2" |
| Rectangle A | 7-7/8" x 7-7/8" | 5-1/3" x 7" | 4" x 4" | 5" x 5-2/3" |
| Rectangle B | 9" x 7-7/8" | 7-7/8" x 5-1/2" | - | 6-2/3" x 4" |
| Square | 7-7/8" x 7-7/8" | 6-7/8" x 6-7/8" | 4" x 4" | 5-1/3" x 5-1/3" |
| Blade Size | 8'10" x 1" x .035" |
| Blade Speed | 230 FPM |
| Saw Motor Power | 1.75 HP |
| Foot Print | 35" x 57" |
| Weight | 750 lbs. |
