Sirius
clamping, positive hydraulic cutting pressure and auto return after the cutting cycle.
Sirius
Standard Features
Swivel saw-head with precision protractor and positive stops at 45 degree, o degree and 60 degree
All gear saw drive with infinitely variable speeds via Omron Inverter
Heavy duty machine base with locking cabinet

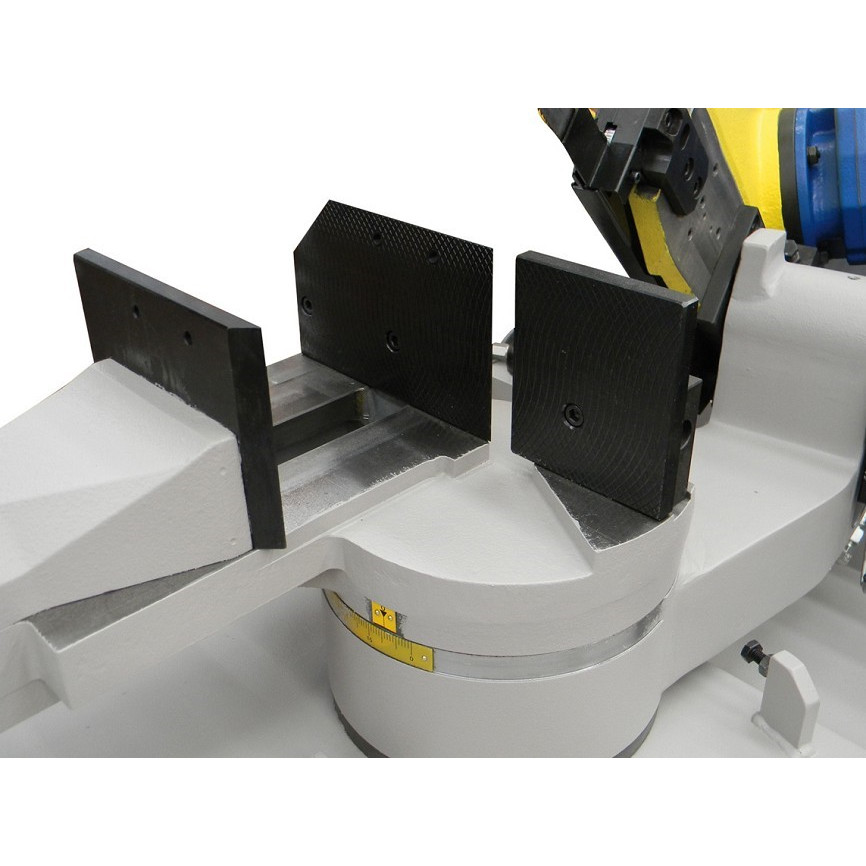

Hydraulic vise
Positive hydraulic down-feed of the sawblade
Semi automatic operation
Automatic return height adjustment of the saw-head
Mechanical blade tension with built in indicator
Precision carbide blade guides with roller guides
Length stop (23” long)
Fast approach
Saw drive via gear reducer with case hardened and ground helical gears
Flood coolant system
24 volt control voltage
One FMB cobalt bandsaw blade and operating manual
Blade Size : 8’10” x 1″ x .035″
Blade Speed: Variable 52 to 394 FPM
Saw Motor Power: 2 HP
Foot Print: 35″ x 59″
Weight: 860 lbs.
Specifications:
| Cutting Capacity | 0 Degree | 45 Degree | 60 Degree | 60 Degree |
| Round | 9 1/2" | 7-1/4″ | 4-1/2″ | - |
| Rectangle A | 8 1/4" x 11" | 5-1/2″ x 7″ | 4-1/3″ x 4-1/3″ | 4″ x 10″ |
| Rectangle B | 9 1/2" x 1- 1/4" | 8-3/4″ x 6-1/2″ | - | - |
| Square | 9 1/2" x 9 1/2" | 6-3/4″ x 6-3/4″ | 4-1/3″ x 4-1/3″ | - |
