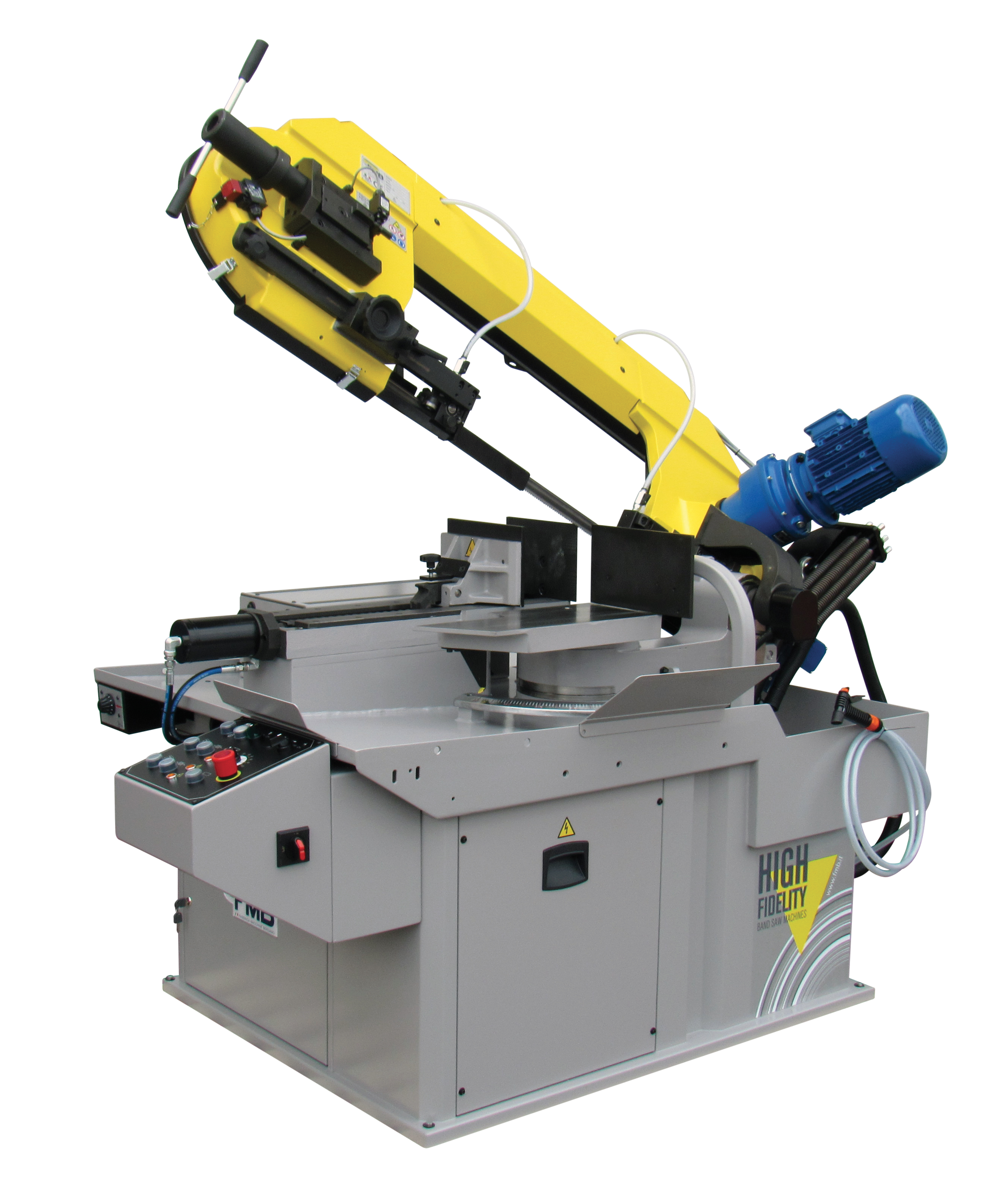

Pegasus / Pegasus XL
1-1/4″ Width Saw Blade
13″ Round Cutting Capacity / Pegasus XL:
Inverter Controlled Infinitely Variable Blade Speed
Up to 60-degree miter
Pegasus / Pegasus XL
Standard Features
Swivel saw head with precision protractor and 0-60 degrees right
All gear saw drive with infinitely variable speeds controlled via inverter
Heavy duty machine base with locking cabinet
Hydraulic vise
Positive hydraulic down feed of the saw blade
Semi automatic operation
Automatic return height adjustment of saw-head
Mechanical blade tension with built in indicator
Precision carbide blade guides with roller guides
Saw drive via gear reducer with case hardened and ground helical gears
Flood coolant system
24 volt control voltage
Fast approach
One FMB cobalt bandsaw blade and operating manual
Blade Size: 13’6” x 1-1/4” x .042” / Pegasus XL: 14’8” x 1-1/4” x .042”
Blade Speed: Variable 52-394 FPM
Saw Motor Power: 4 HP
Foot Print: 52” x 90” / Pegasus XL: 41” x 85”
Weight: 1,870 Lbs. / Pegasus XL: 2,024 Lbs.
Specifications: Pegasus / Pegasus XL
| Cutting Capacity | 0 Degree | 45 Degree | 60 Degree | Bundle |
| Round | 13" | 13" | 9-1/2" | - |
| Rectangle A | 13" x 20" / 13” x 25-1/2” | 10” x 14-1/2” / 13″ x 18″ | 6-1/4” x 9” / 6-1/4” x 12-1/2” | 8” x 19” |
| Square | 13” x 13” | 13” x 13” | 6-1/4” x 6-1/4” | - |
