FMB PLUTON DIRECT GEAR DRIVEN - GRATING-PANEL SAW SERIES
Since 1982, FMB has greatly expanded its product offering. FMB now offer over 30 models with cutting capacities ranging from 8-5/8” to over 20 inches. This includes Manual, Gravity Feed, Semi-Automatic, and Fully Automatic Horizontal Bandsaws and Vertical Tilt-Frame Bandsaws.
Pat Mooney Saws is is the national distributor for FMB saws headquartered in Addison, IL. With a facility of over 50,000 sq. ft. with 10,000 sq. ft. dedicated to Training and Technical Center that houses over 15 machines under power. In the Training and Technical Center, we perform test cuts, runoffs, and machinery demonstrations. Pat Mooney Saws also offer training to customers and dealer partners. The facility also includes a large, well-stocked inventory of saw machines, saw blades, and spare parts that are ready for delivery.

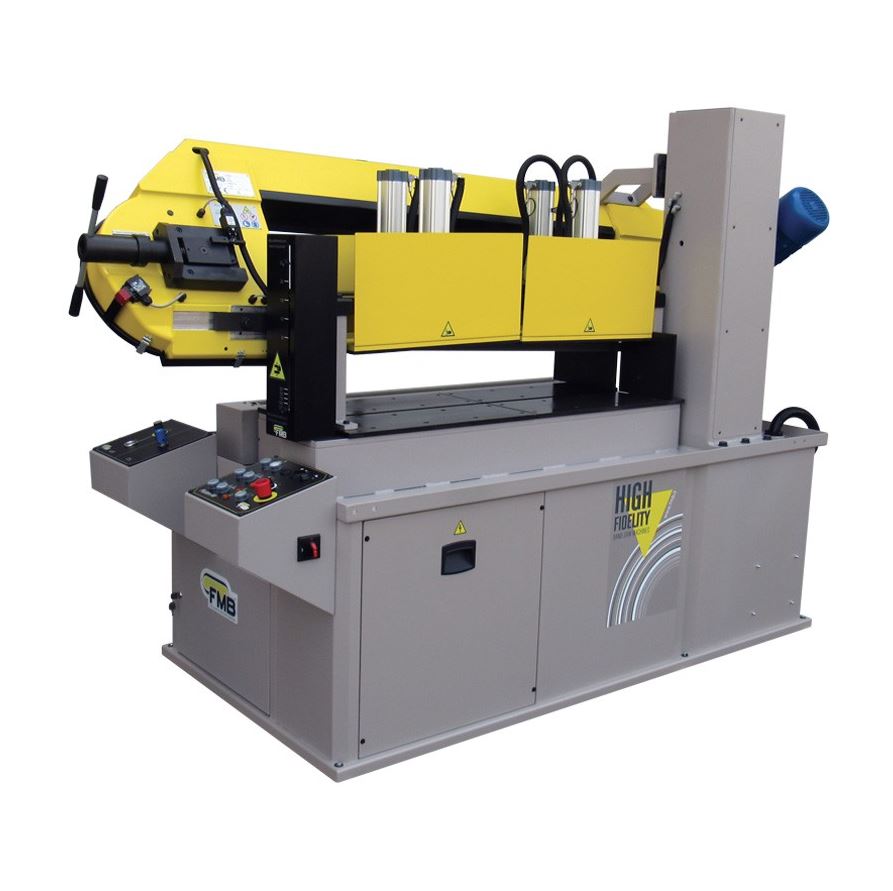

FMB Pluton Air Grating Panel Saw

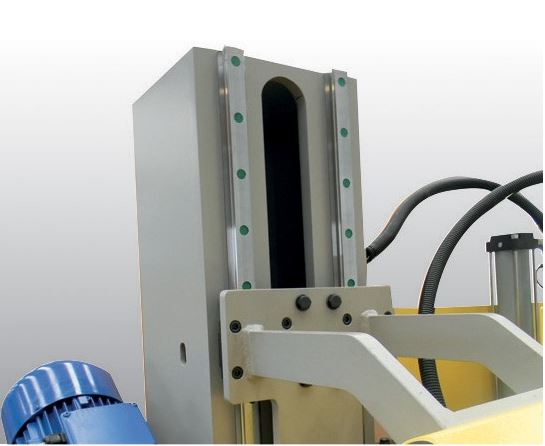

The Pluton Air is a semi-automatic precision band saw machine designed to cut steel grating and panels. The saw blade is positioned at a 4 degree cant to provide the most effective position of the teeth in the material as it is being cut. This ensures faster and more accurate cutting. The saw head moves up and down on double linear guides on the main column and on a u-shaped guide on the front secondary column. The saw head feed rate is fully hydraulic which gives the operator full control of the feed rate to ensure accurate cuts. The saw blade guide system includes 4 side bearings, 2 top bearings (on top side of the sawblade) and 4 carbide guides. Saw blade speed is infinitely variable and is controlled via an Omron inverter. The clamp system consists of 4 vertical clamps with 4 independent cylinders to allow the clamps to adjust easily to different width materials when the saw cycle is activated. The machine comes standard with a saw blade mist lubrication system.
Standard Features
All gear saw drive with infinite variable speeds via Inverter Drive
Heavy duty machine base with locking cabinet

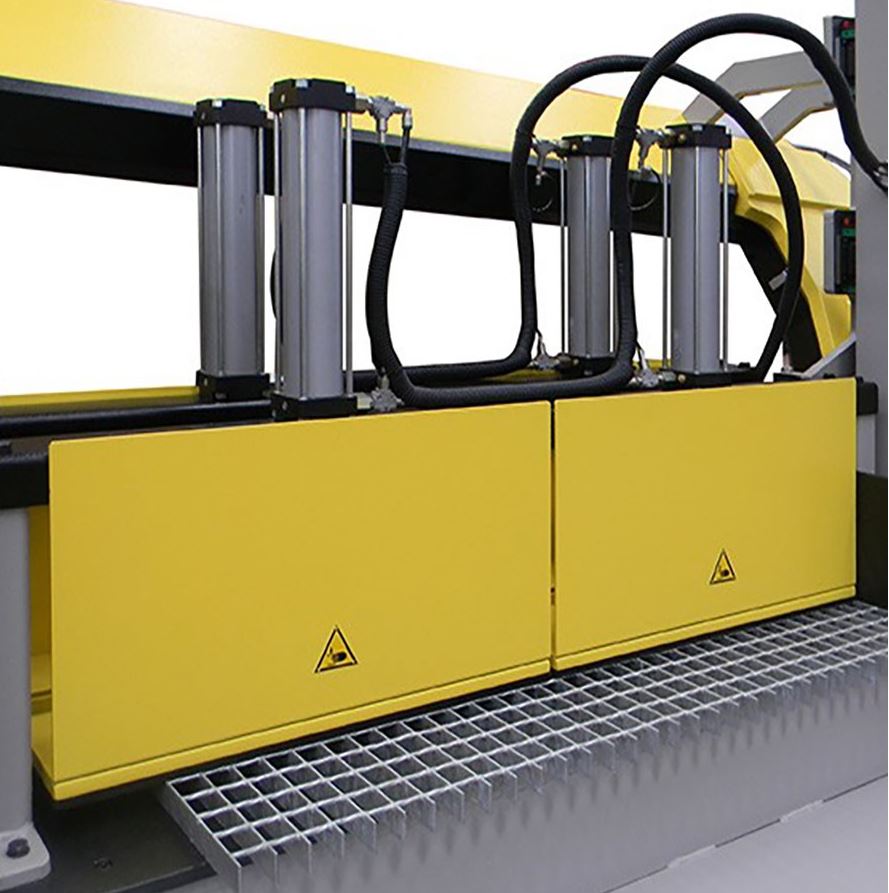

Top Pneumatic Clamps
Positive hydraulic down feed of the saw blade
Semi automatic operation
Automatic return height adjustment of the saw head

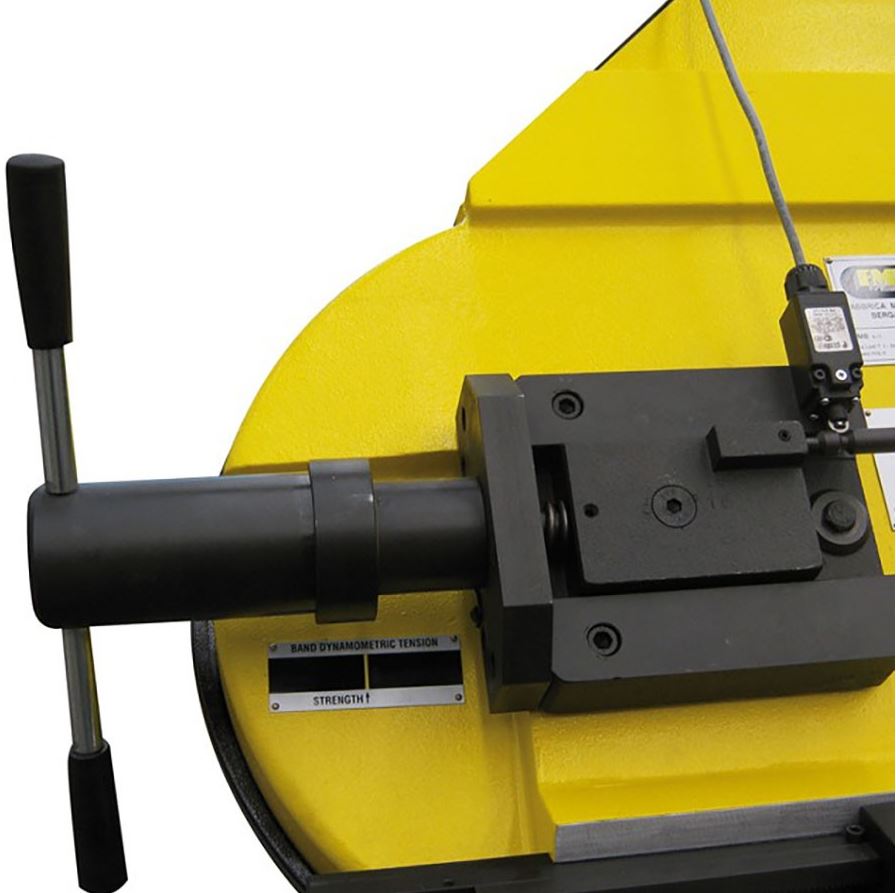

Mechanical blade tension with built in indicator
Precision carbide blade guides with roller guides

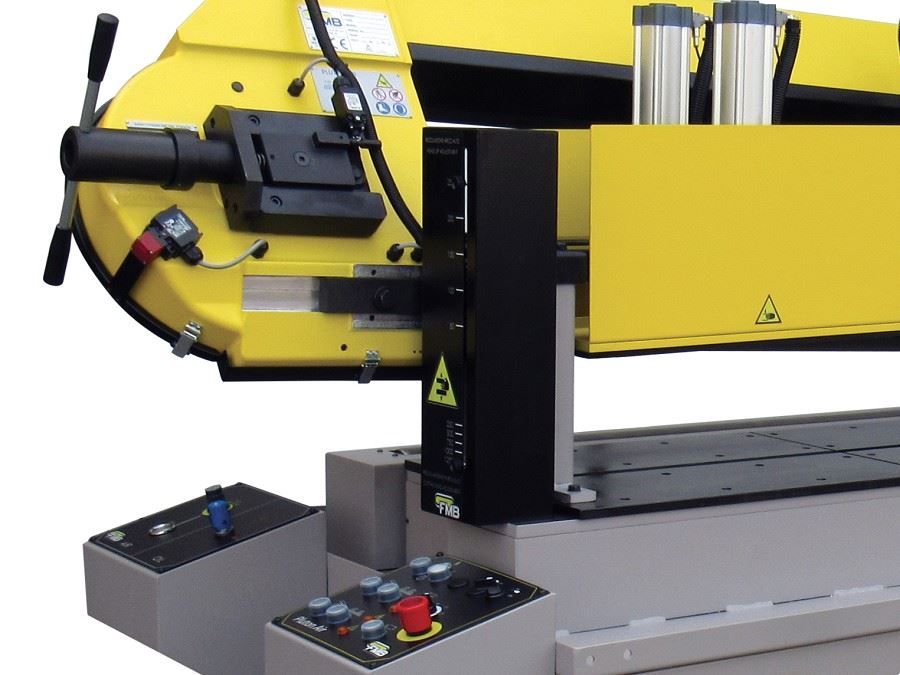

Blade guide with combined action of side bearings, carbide plates and top bearing.
Reduction gear box with inclined grinded case hardened teeth lubricated with long lasting grease.
Connection of the motor wheel to a flange with two conical bearings.
Micro drip blade lubrication
24 volt control voltage
Saw Head Fast approach
Specify voltage at the time of order (220/3PH, 440/3PH)
One FMB cobalt bandsaw blade and operating manual
Specifications
| Cutting Capacity | 10" x 49" |
| Blade Size | 18' 4 1/2" x 1 1/4" x .042" |
| Blade Speed | Variable 131 - 525 FPM |
| Saw Motor | 4 HP |
| Voltage | 220 / 440 3 Phase |
| Foot Print | 110" x 59" |
| Weight | 3,080 lbs |
