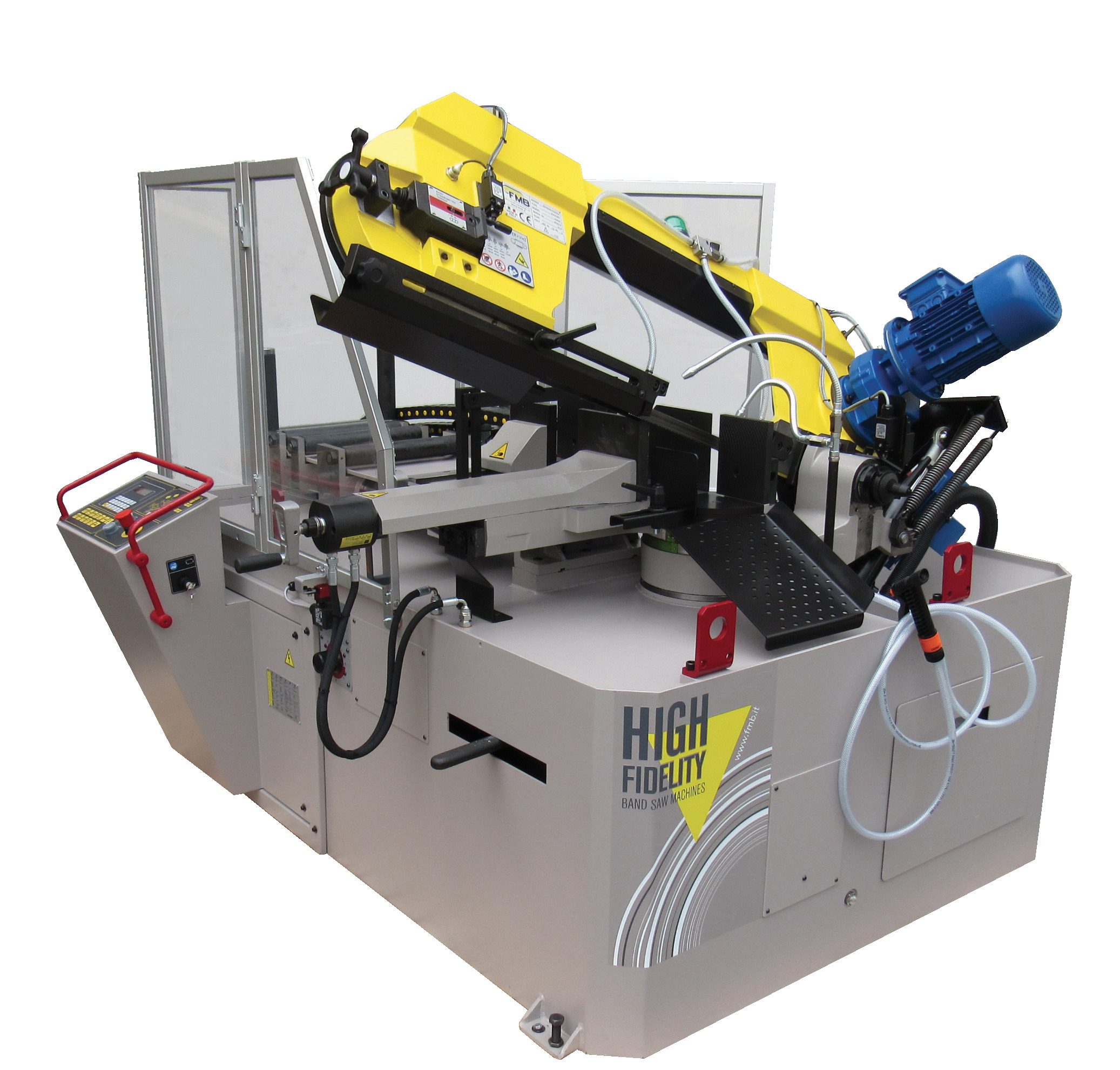

FMB Jupiter CN
Sawhead pivots from 0-60 degrees to set up a miter cut in seconds. The CN control can store 99 cutting jobs and offers scrap minimization.
JUPITER CN
Standard Features & Equipment

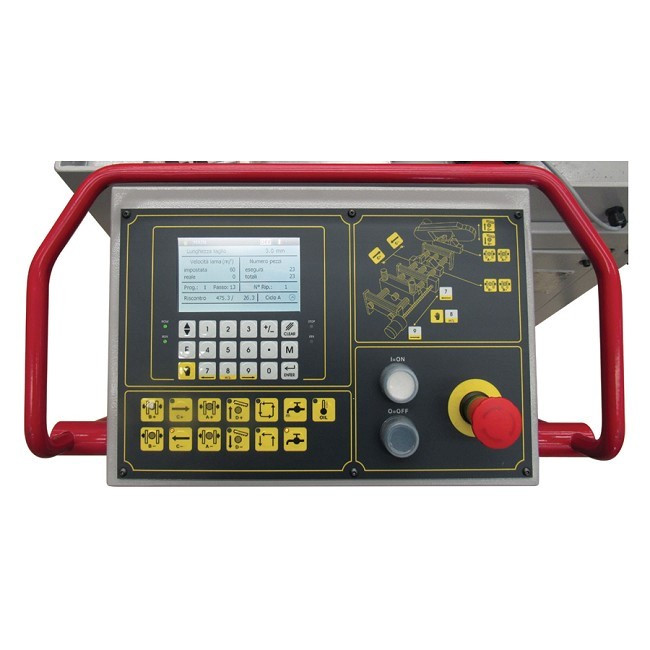

CN cutting control manages your cutoff programs, simply input via the keypad, desired length, number of pieces, blade speed, etc.
Heavy duty machine base
CN control for set up of 99 cutting jobs
Swivel sawhead 0-45 degrees in auto cycle, 0-60 degrees in semi- automatic

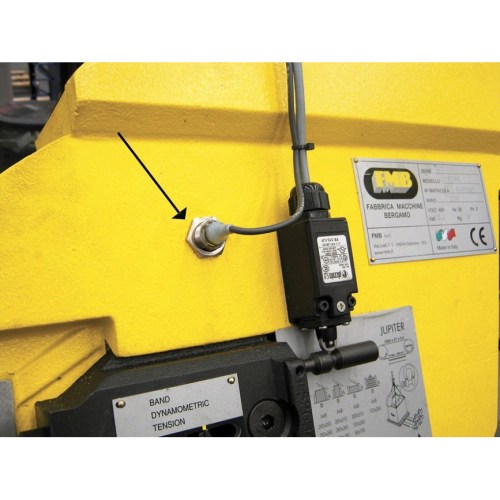

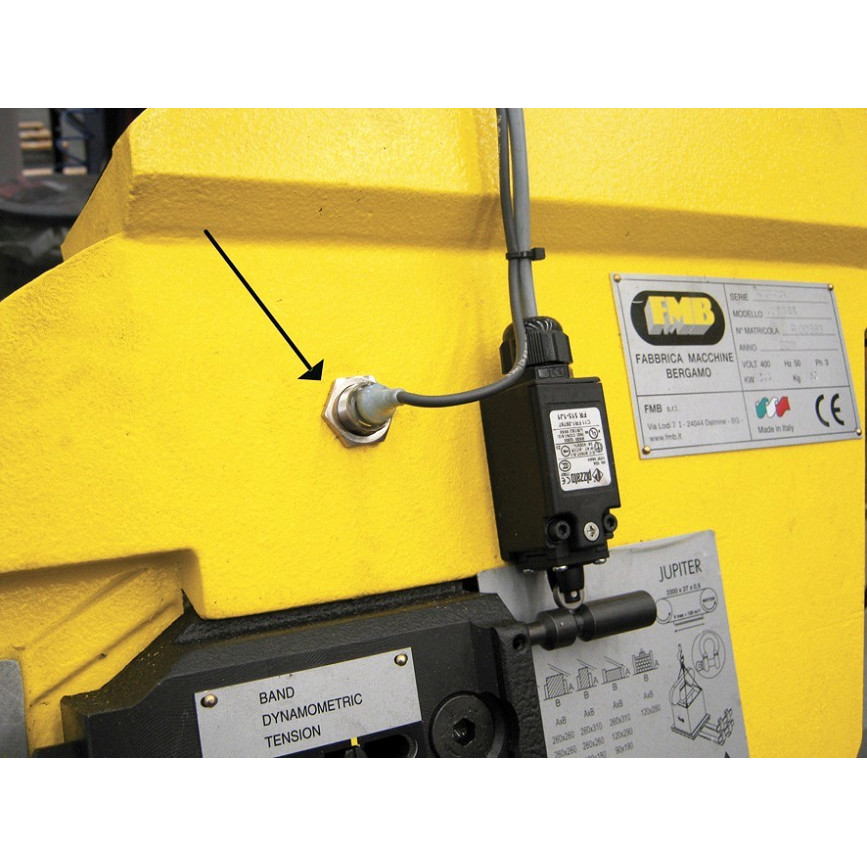

Mechanical band tension with built in indicator
Precision carbide blade guides with roller guides

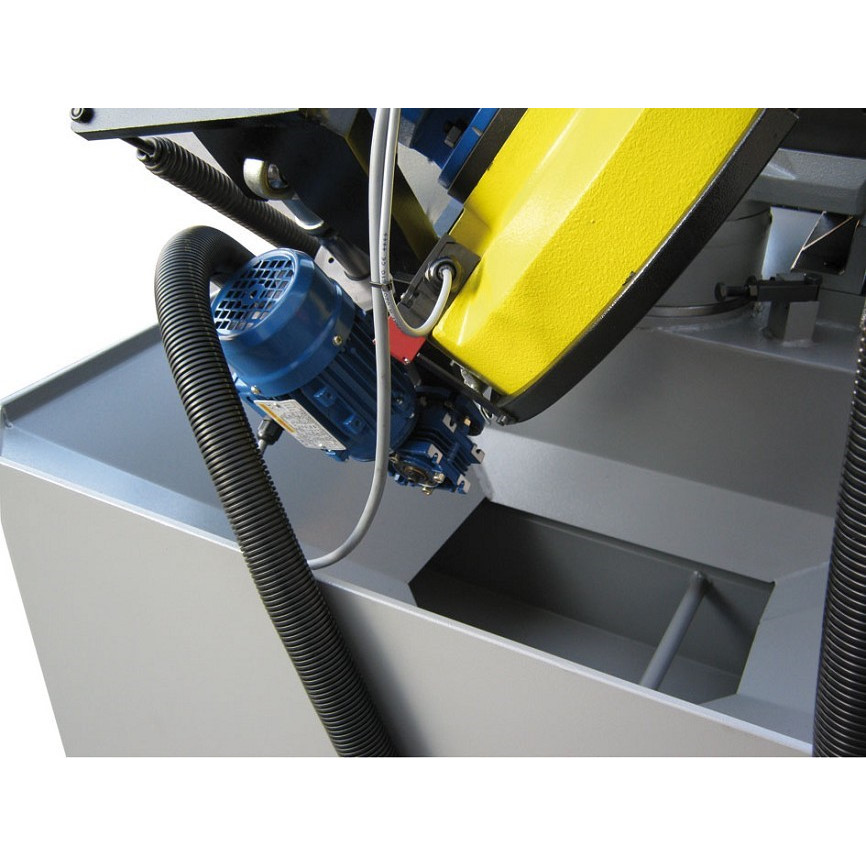

Planetary gear drive with reducer unit with case hardened and ground helical gears, greased and lubricated for long life
Flood coolant system with automatic return
Large chip pan with coolant drain
Positive hydraulic downfeed of sawblade
Hydraulic clamping
Hydraulic gripper vise for index material
Saw blade return height control
Fast approach of blade to material
Two speed infeed system to slow feed of material to zero
Infinitely variable blade speeds 52-396 FPM
Blade breakage switch to shut machine off in case of blade breakage
Motion detector to sense if blade stalls in material
Self-centering feed vise for crooked or bent material
Mechanical hold down for stack cutting
Electrically driven chip brush
Roller extension with coolant return tray
Specifications
| Cutting Capacity | O Degree | 45 Degree | 60 Degree | Bundle |
| Round | 10 1/4” | 10 1/4” | 7” | |
| Rectangle | 10-1/4” x 12-1/4” | 4 3/4” x 11-1/2” | 3-1/2” x 7-1/2” | 4-3/4” x 11” |
| Square | 10-1/4” x 10-1/4” | 10-1/4”x 10-1/4” | 7” x 7” |
| Blade Size | 10’10” x 1” x .03 |
| Stroke | 19-1/2” |
| Blade Speeds | Variable 52 to 394 FPM |
| Saw Motor | 2HP |
| Floor Space | 91” x 75” |
| Machine Weight | 2,530 lbs |
| Hydraulic Motor | .5 HP |
| Coolant Motor | ¼ HP |
