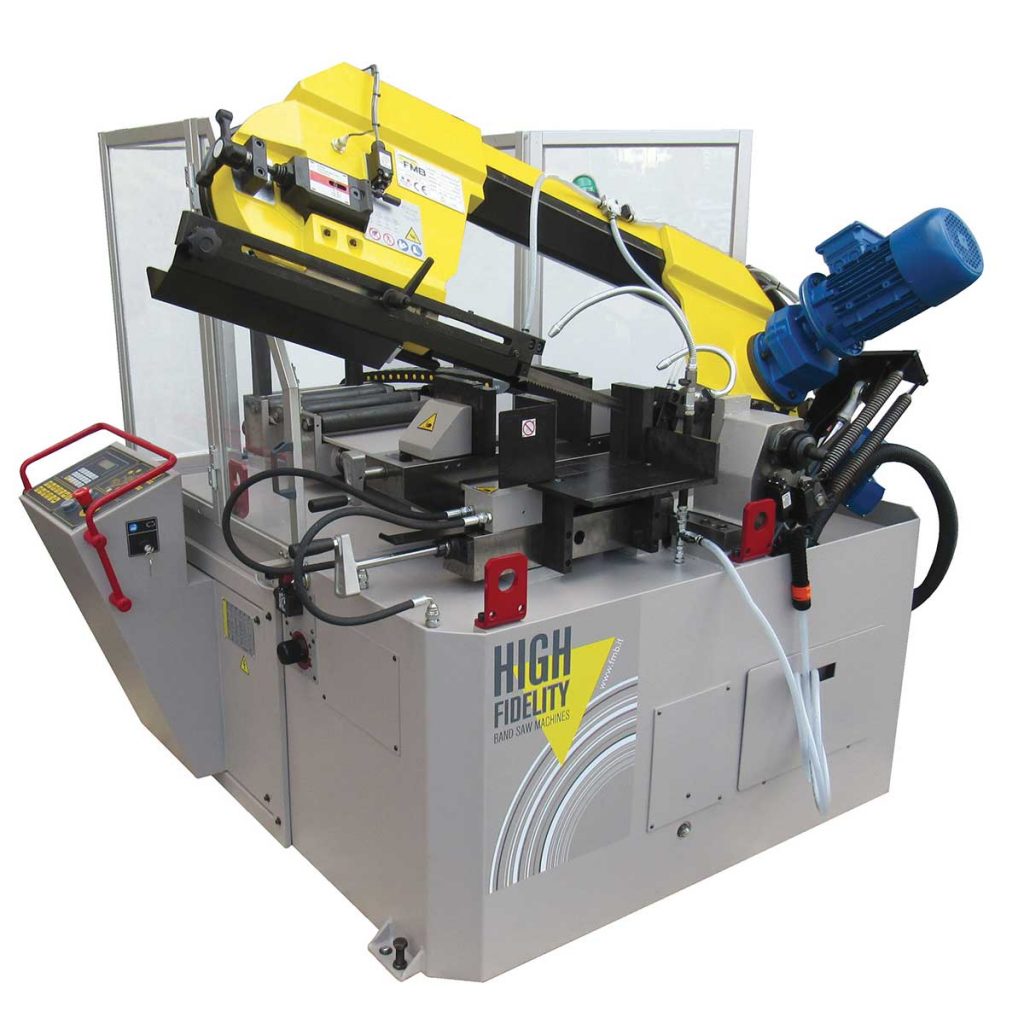

ZEUS CN

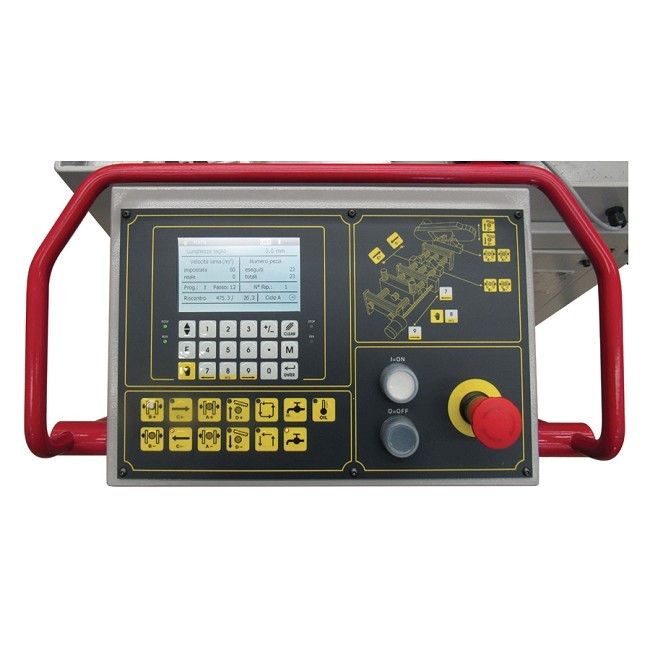

The Zeus CN cutting control manages your cutoff programs, simply input via the keypad, the desired length, number of pieces, blade speed, etc. and the machine will monitor the cutoff jobs for accuracy, includes CN back gauge encoder, and servo motor.

Standard Features & Equipment

Heavy Duty Machine Base
CN control for set up of 99 cutting jobs

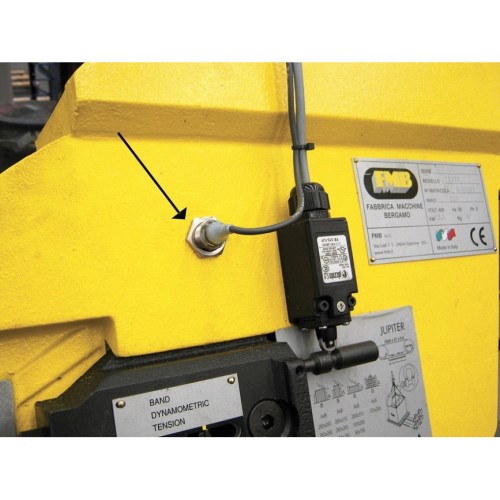

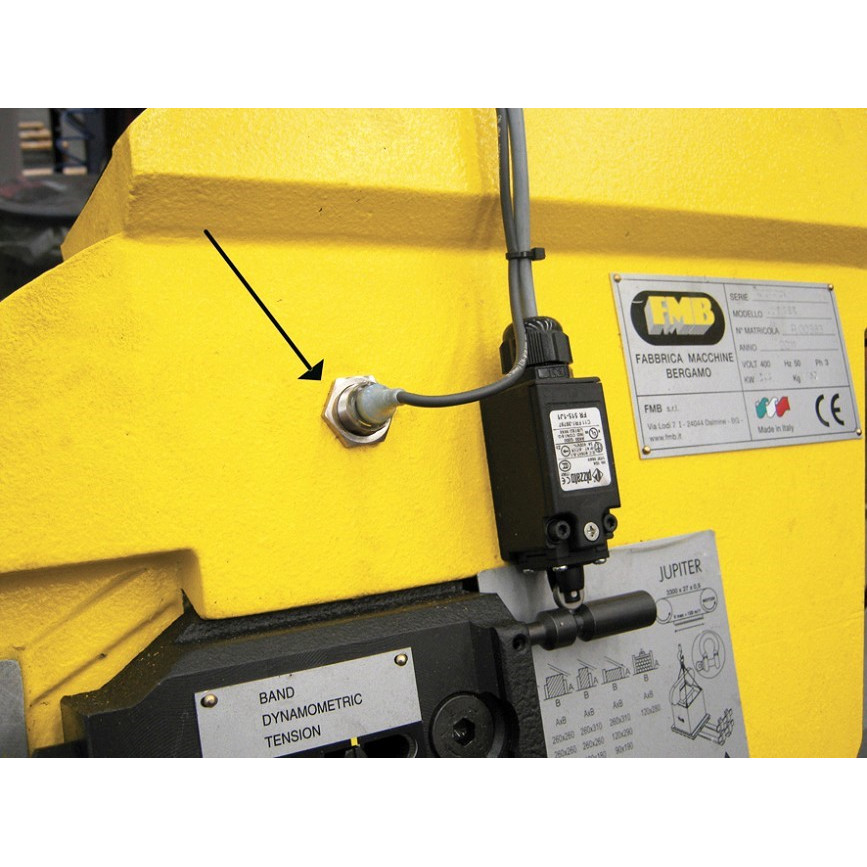

Mechanical Band Tension with Built In Indicator
Precision Carbide Blade Guides with Roller Guides

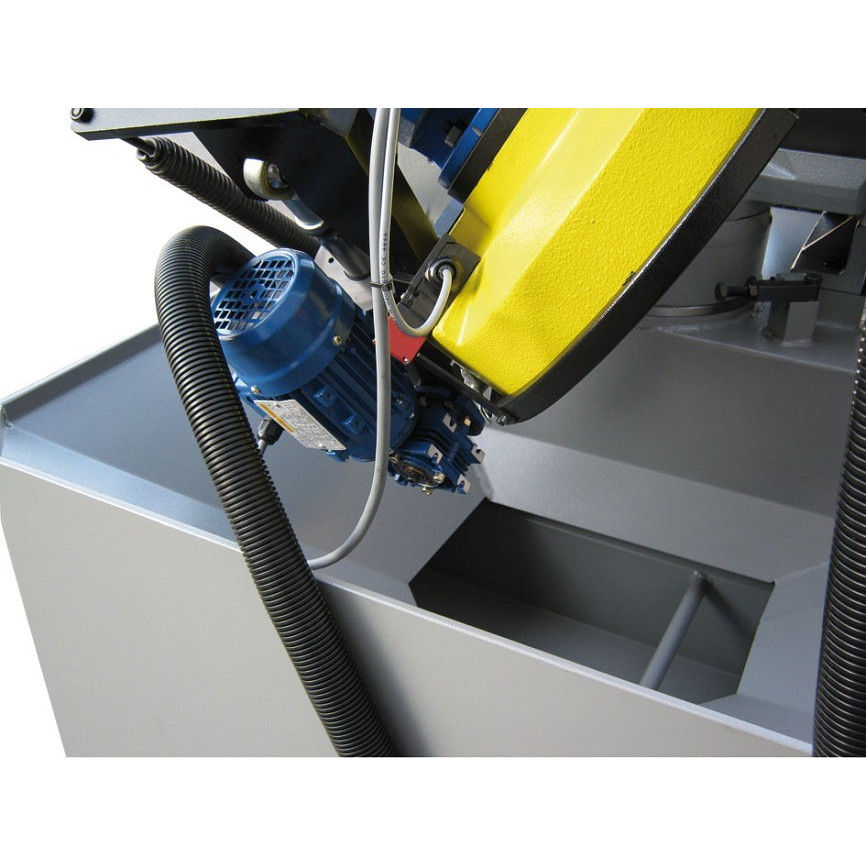

Planetary Gear Drive with gear reducer unit, case hardened and ground helical gears, greased and lubricated for long life
Flood Coolant System with automatic return
Large Chip Pan with Coolant Drain
Positive Hydraulic Down-feed of the Sawblade

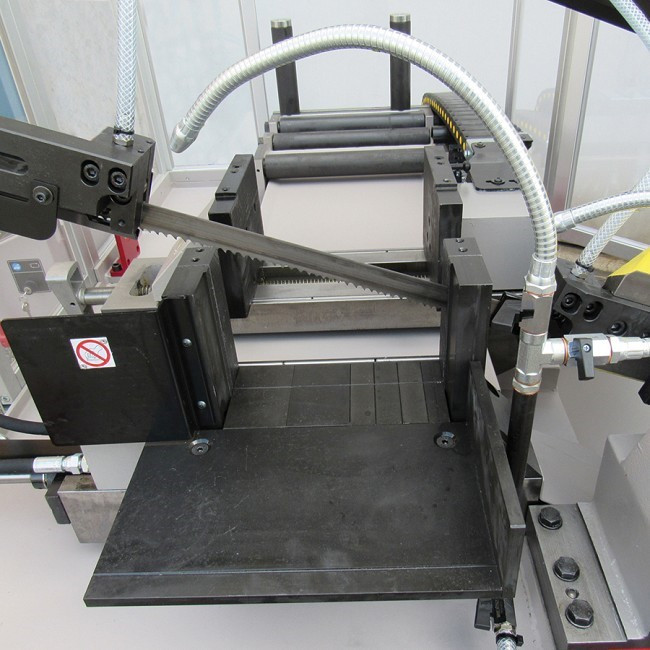

Hydraulic Clamping * split front vise clamps on both sides of blade
Hydraulic Gripper Vise for index material to be cut.
Sawblade return Height Control
Fast Approach of Blade to the material
Two speed infeed system to slow feed of material to zero
Infinitely variable blade speeds 52-396 FPM
Blade Breakage Switch to shut machine off in case of blade breakage
Motion Detector to sense if blade stalls in material

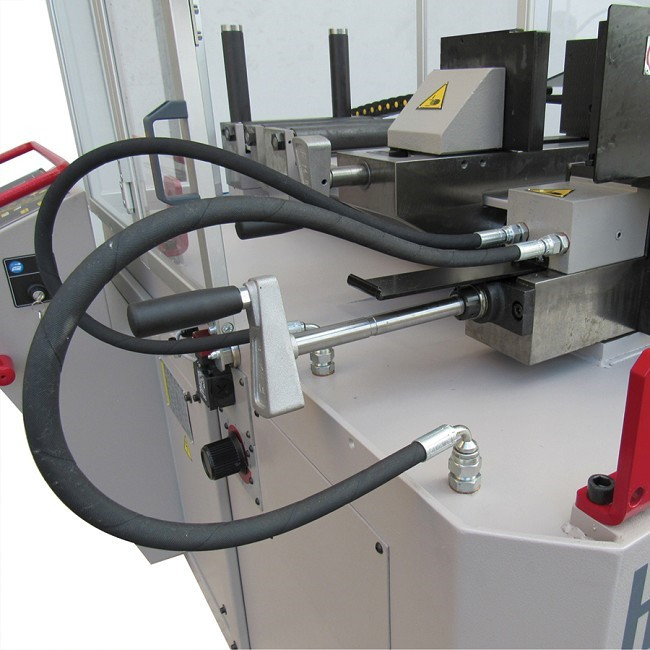

Self Centering Feed Vise for crooked or bent material
Mechanical Hold Down for stack cutting
Electrically Driven Chip Brush
Roller Extension with Coolant Return Tray
Complete electrical wired for 220, 440 volts, 3Ph 60 Hz; 24 volt control voltage

Specifications
