Machine Features:
Two Saw Head Design:

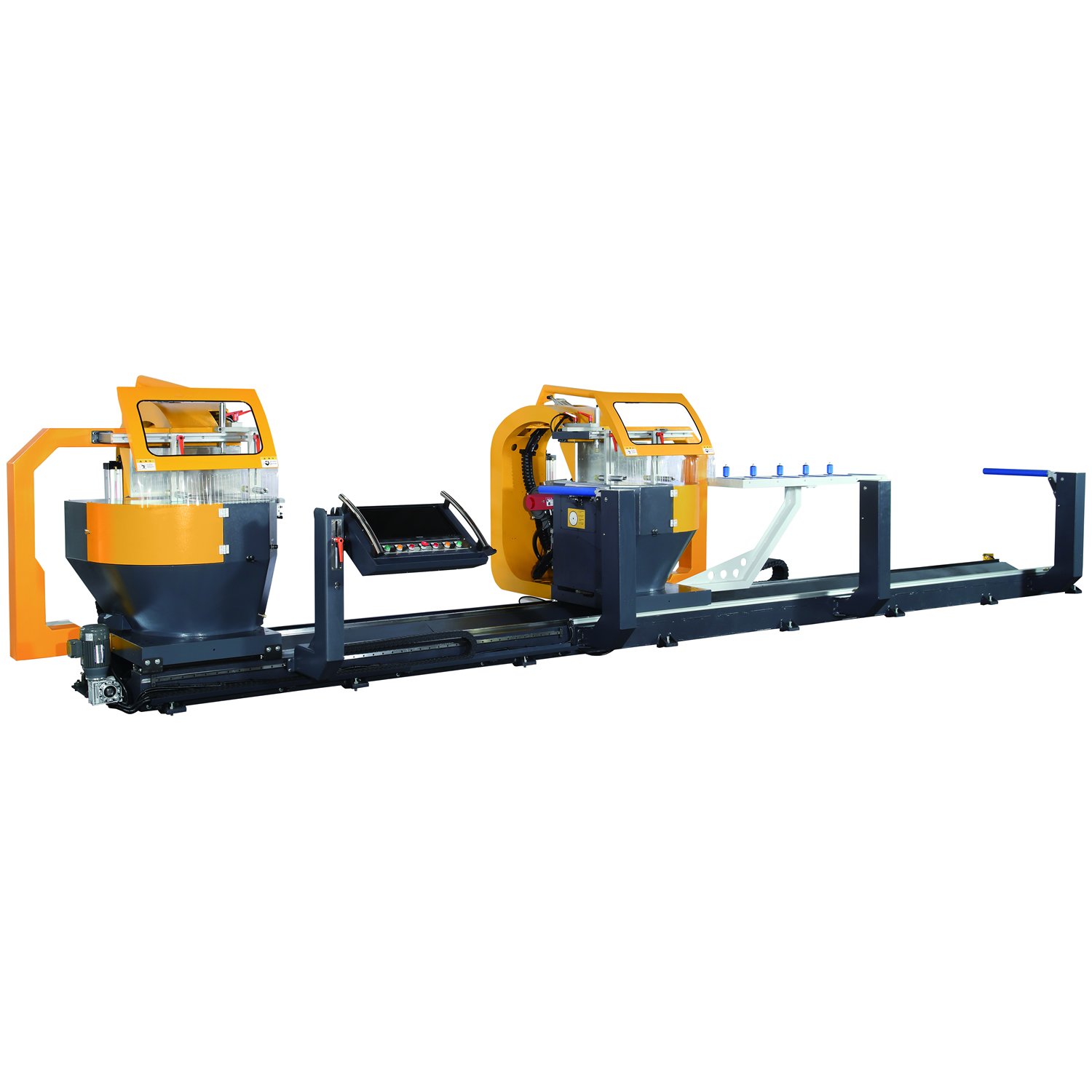

The PMI-T5 is equipped with two saw heads. One of the saw heads is fixed and one is
moveable, so it can be programmed to a cut length. The moveable saw head
automatically positions to the programmed cut length and it moves on dual precision
linear guideways to ensure accurate movements. The saw heads can work
simultaneously or independently.

Saw Head Tilt:
The fixed saw head will tilt 45 degrees to the right and the moveable saw head will tilt 45
degrees to the left. The tilt position is servo controlled on both saw heads. The operator
simply enters the required tilt position for each head into the touchscreen control and they
automatically move to the entered dimensions.

Saw Head Rotation:
The fixed and moveable saw head will rotate 67.5 degrees to the left and right. The
rotation position is servo controlled on both saw heads. The operator simply enters the
rotation position for each head into the touchscreen control and they will automatically
move to the entered dimensions.

Moveable Saw Head:
The moveable saw head’s position is servo controlled so it can be set to automatically
move to a programmed cut length. The entire saw head moves on dual precision linear
guideways. It is available in 177 inch (4.5m) and 255 inch (6.5m) working lengths. The
moveable saw head can be used as a automatic indexing vise so material is being moved
to a programmed cut length and cut on the fixed saw head.

Saw Motor:
Each saw head is equipped with a 7.5 HP saw motor.
Feed Rate Control:
The saw blade feed is controlled via a pneumatic cylinder with full control of the feed
rate. This allows for accurate cuts and long blade life. In addition, the saw blade travel is
controlled for fastest cycle time.

Material Clamping:
The pneumatic clamping system has adjustable clamping pressure to prevent distortion of
thin wall profiles. Each saw head is equipped with vertical and horizontal clamping on
the infeed and outfeed sides of the saw blades.

Precise Micro-Drip Blade Lubrication System:
The saw blades are lubricated via a micro-drip system. A small amount of lubricant is
introduced to an air line at the point of discharge for control and economical distribution
of the saw lubricant.

Saw Blade Enclosure:
The saw blades are fully enclosed underneath the saw cabinets. All access doors are
protected with safety switches.
