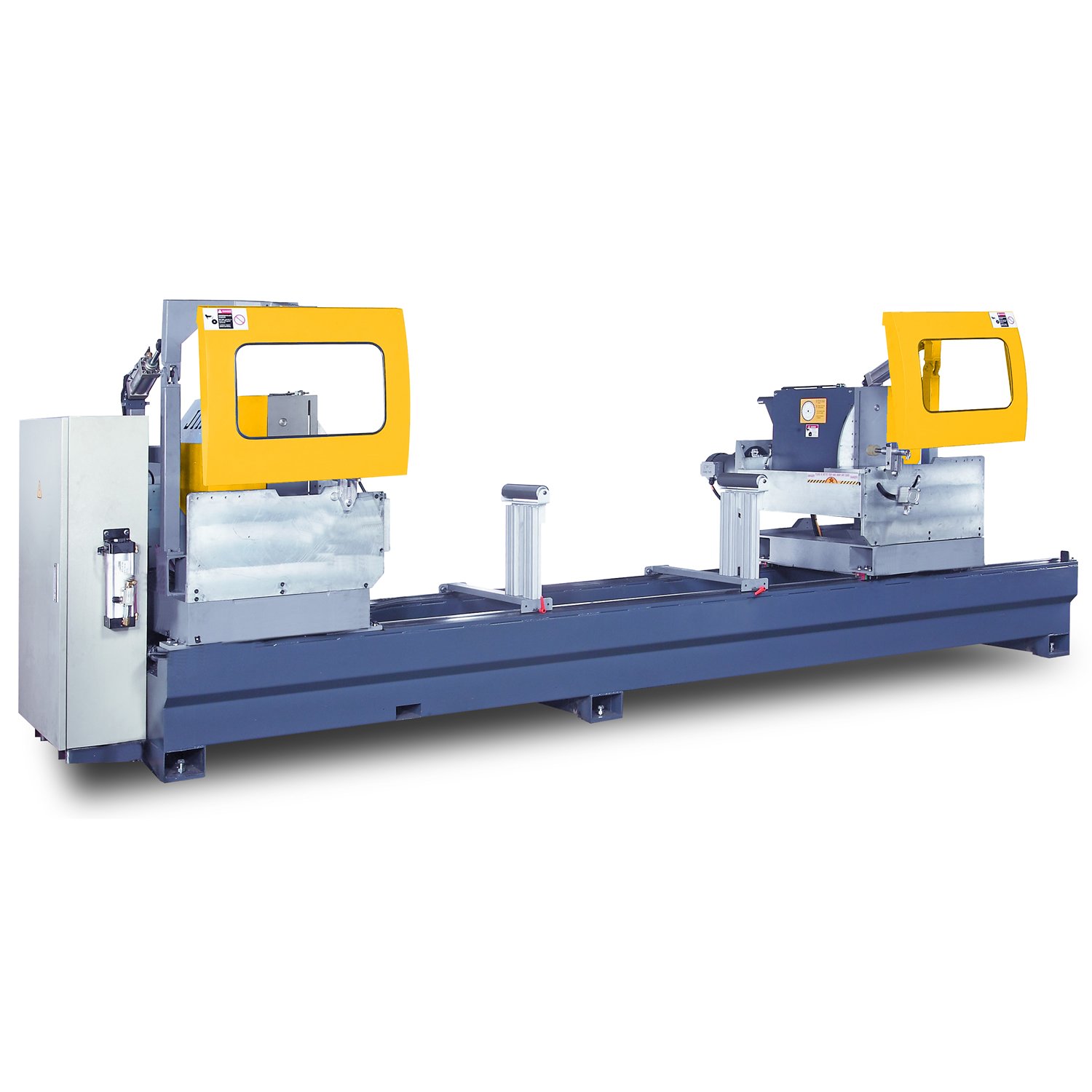

PMI T-3 Double Head Miter Saw
The PMI-T3 CNC Automatic Double Head Miter Saw is built and designed to cut aluminum extrusions, profiles, and other non-ferrous materials (copper, brass, plastics).
Base price
Description
Standard Features
Fully Automatic Operation
One Fixed Saw Head, One Movable Saw Head
5 HP Saw Motors (2)
Saw Heads are Cross-Cut Design
Servo Controlled, Powered Saw Heads – Tilt left / right
45 degrees tilt inwards
67.5 degrees tilt outwards
Moveable Saw Head – Servo Controlled
Working Lengths Available 177” or 256”
Touchscreen Control
2,800 RPM Saw Blade Speed
Full Control of the Feed Rate – Air over Oil Feed System
Vertical and Horizontal Clamping
Adjustable Clamping Pressure
20” Diameter Saw Blades (2)

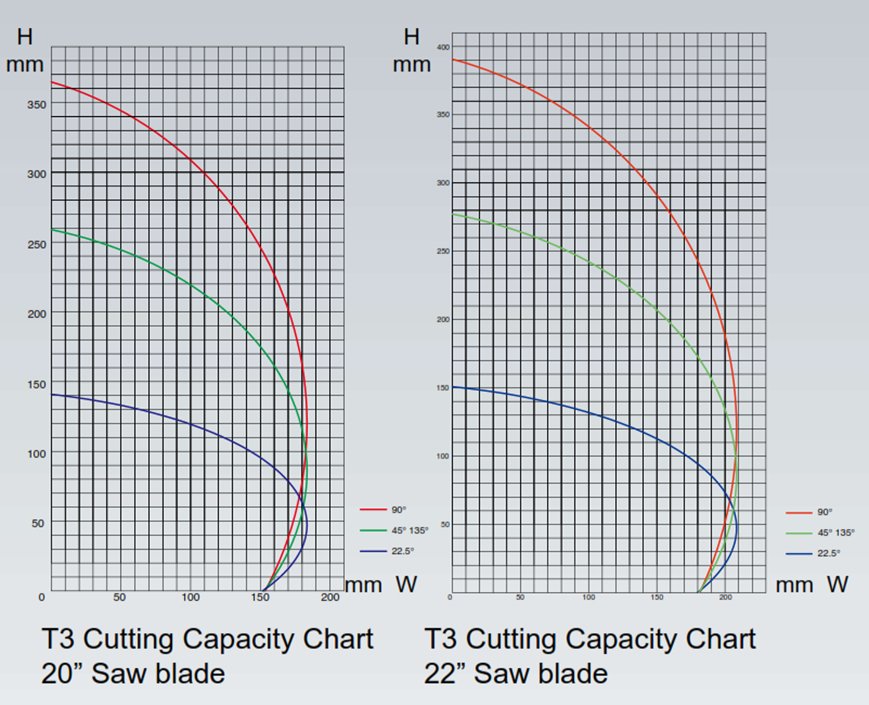

14” Maximum Sawing Height (at 90 degrees with 20” diameter saw blade)
6” Maximum Sawing Width (at 90 degrees with 20” diameter saw blade)
