Lockformer is recognized as one of the leading suppliers of quality metal forming equipment around the world. Our commitment in designing and building practical, cost-efficient equipment has endured for over 75 years. Our customers have come to depend on the Lockformer name for dependability.

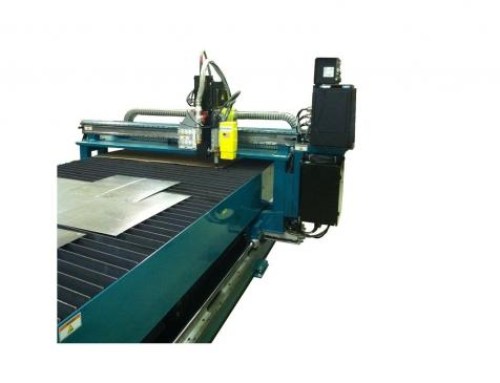

Hy-Definition Plasma cutting has never been easier or more affordable and it's no wonder that the Vulcan 3100 HyDefinition machine is truly the Grand Master of all precision cutting systems offered worldwide. State-of-the-art in every detail and component.

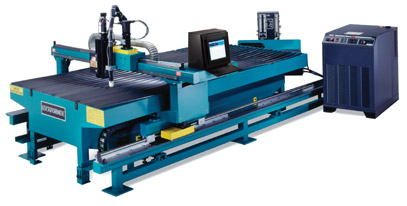

The Vulcan 3100D is used in manufacturing applications for cutting metal up to 1 1/2" thick. With its heavy-duty, welded-steel construction, precision linear bearings and dual-side rack-and-pinion gear drive, you can look forward to years of trouble-free operation and a maximum return on your investment.

Machine Software: Vulcan 6XP HVAC

Computer System: Dell PC with 19" Monitor & Printer

Machine Control: 7590 CNC-TS & 15" Color Graphic Industrial Touch Screen

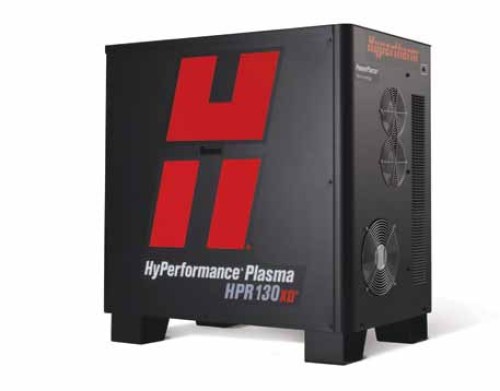

Cutting Unit: Hypertherm HPR-130XD

Cutting Area: Standard: 5' x 10', (Optional: 6' x 12')

Maximum Traversing Speed: 800 IPM

Max. Table Capacity: 1,000 lbs

Plasma Amperage,(HPR-130XD):Adjustable from 30 to 130 amps

HyperTherm 130XD Operating Data

Mild Steel Cut Capacity
Dross free cutting: 5/8"
Production pierce: 1-1/4"
Maximum cutting capacity: 1-1/2"

Stainless Steel Cut Capacity
Production pierce: 3/4"
Maximum cutting capacity: 1"

Aluminum Cut Capacity
Production pierce: 3/4"
Maximum cutting capacity: 1"
