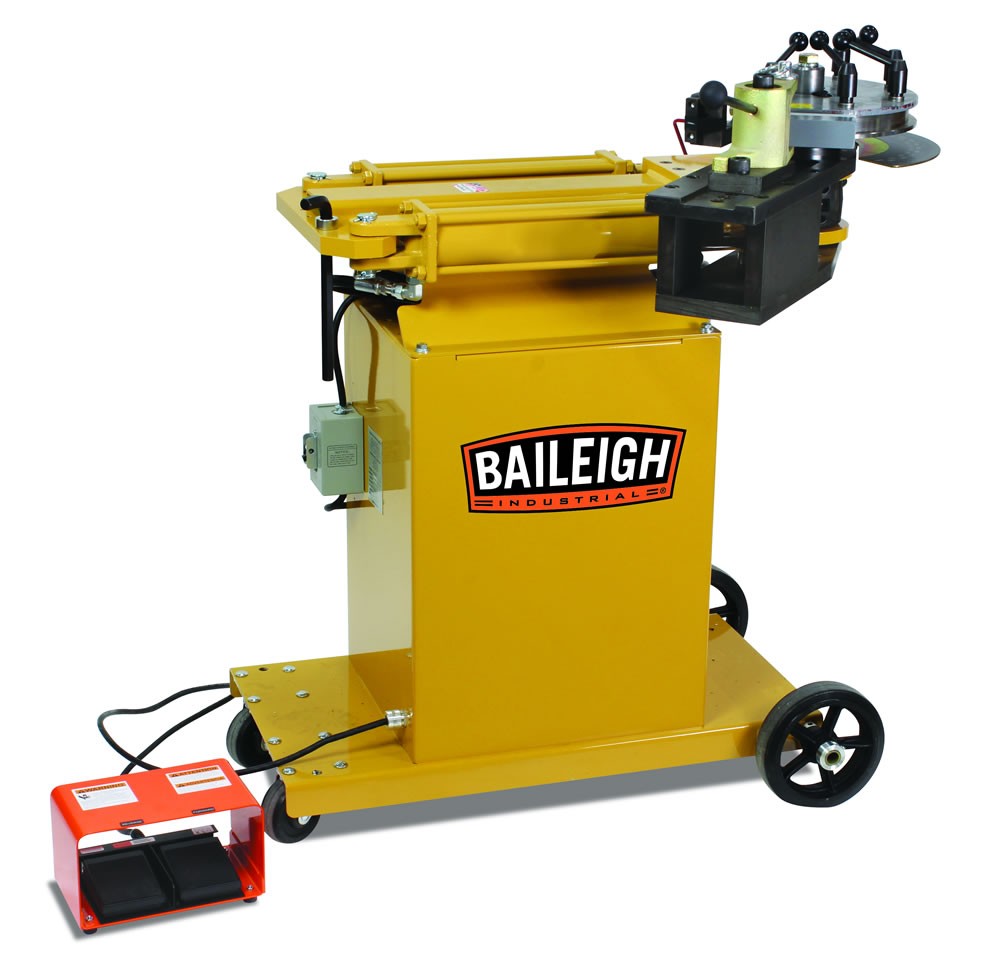

The RDB-150 tube bender from Baileigh Industrial broke new ground in 2002 when it became the first hydraulic tube bender to consistently and accurately bend tube and pipe to 180 degrees in one shot. Since then we now have thousands in the field working as well today as they did the day they were made. The RDB-150 is the perfect bender for small to medium fabrication shops looking to save time and money.

The RDB-150 uses a low pressure industrial grade hydraulic system that operated on 110 volts. This industrial grade system allows the RDB-150 to bend 2" Schedule 40 pipe and up to 2-1/2" tubing with a wall thickness of .120" mild steel. The RDB-150 has an 8" centerline radius maximum, depending on the outside diameter of the material being bent. The RDB-150 accepts all Baileigh Industrial "drop on" tooling, giving you thousands of choices for your application. Baileigh Industrial will also make custom tooling sets if the need arises.

Other features of the RDB-150 are an easy to read degree indicator and quick release counter die system, which allows the pipe bender to be loaded and unloaded quickly. The base of the RDB-150 tube bender also includes wheels, this help with shops that are especially small and allows the bender to be pushed out of the way when not in use.

For more information on the RDB-150 contact a Baileigh Industrial representative.
