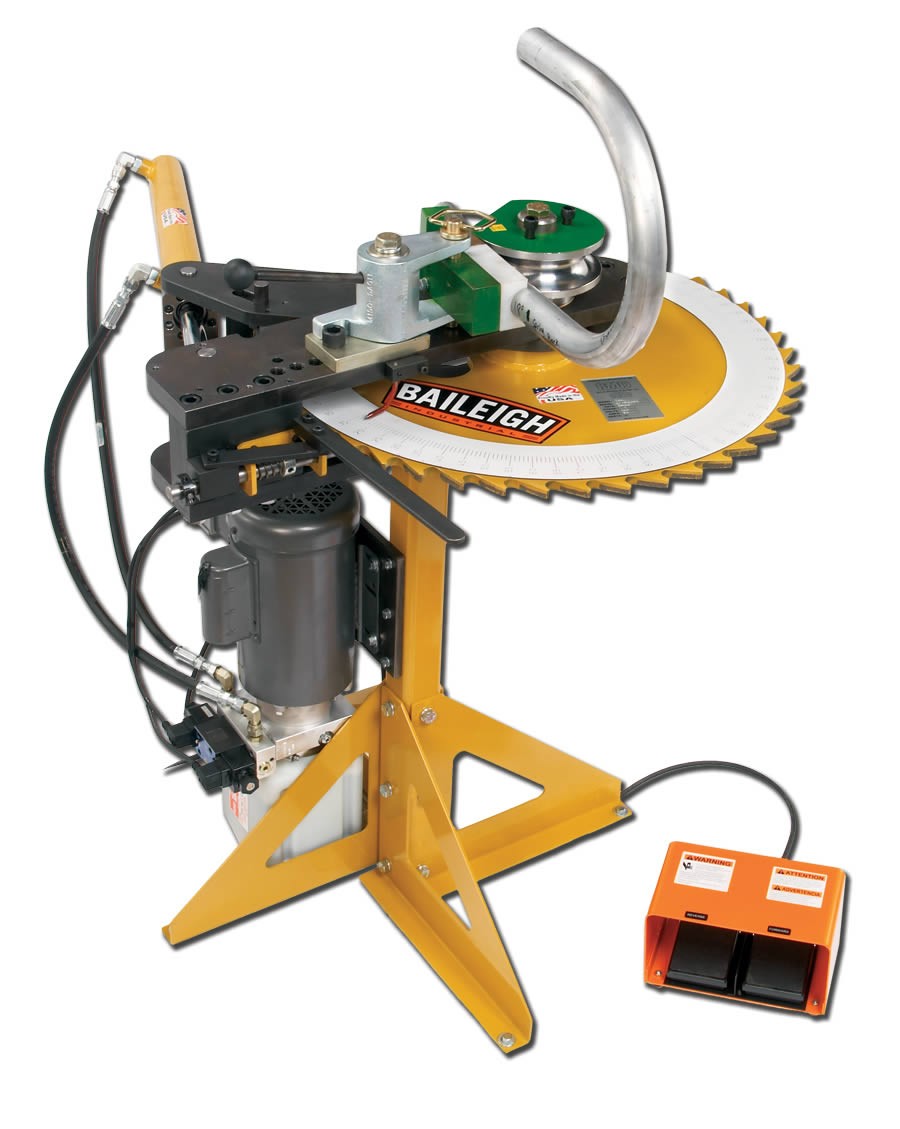

Have a manual bender and want to step up to a hydraulic unit to increase productivity and relieve strain on your body?..... well the RDB-125 rotary draw bender is just what the doctor ordered. This hydraulic bender is designed to work with all Baileigh Industrial "drop on" tool sets and constructed of only the best materials.

The RDB-125 operates much like the machine it was based from, the RDB-100, but it incorporates a hydraulic system to turn the ratchet plate and do the actual bending. Requiring only 110 volts to power it, this pipe bender uses powerful low pressure industrial grade hydraulics making it quiet, quick, and very safe to use even when bending at full capacity. The RDB-125 has a capacity of 2-1/2" OD tubing, 2" OD Chromalloy, 2" square tubing, and 2" schedule 40 pipe. The RDB-125 has a maximum center line of 8" depending on the outside diameter of the material being bent.

The RDB-125 will bend to 200 degrees allowing for true 180 degree bends without having to repin the die set and it only takes 4 complete pushes to reach 180 degrees. Utilizing its built in anti-spring back mechanism, the RDB-125 can retract its hydraulic cylinder without worry of losing its place in the bend. Just retract and push again, simple and easy. A quick release counter die positioner is also included to make material loading and 8uinloading a breeze.
