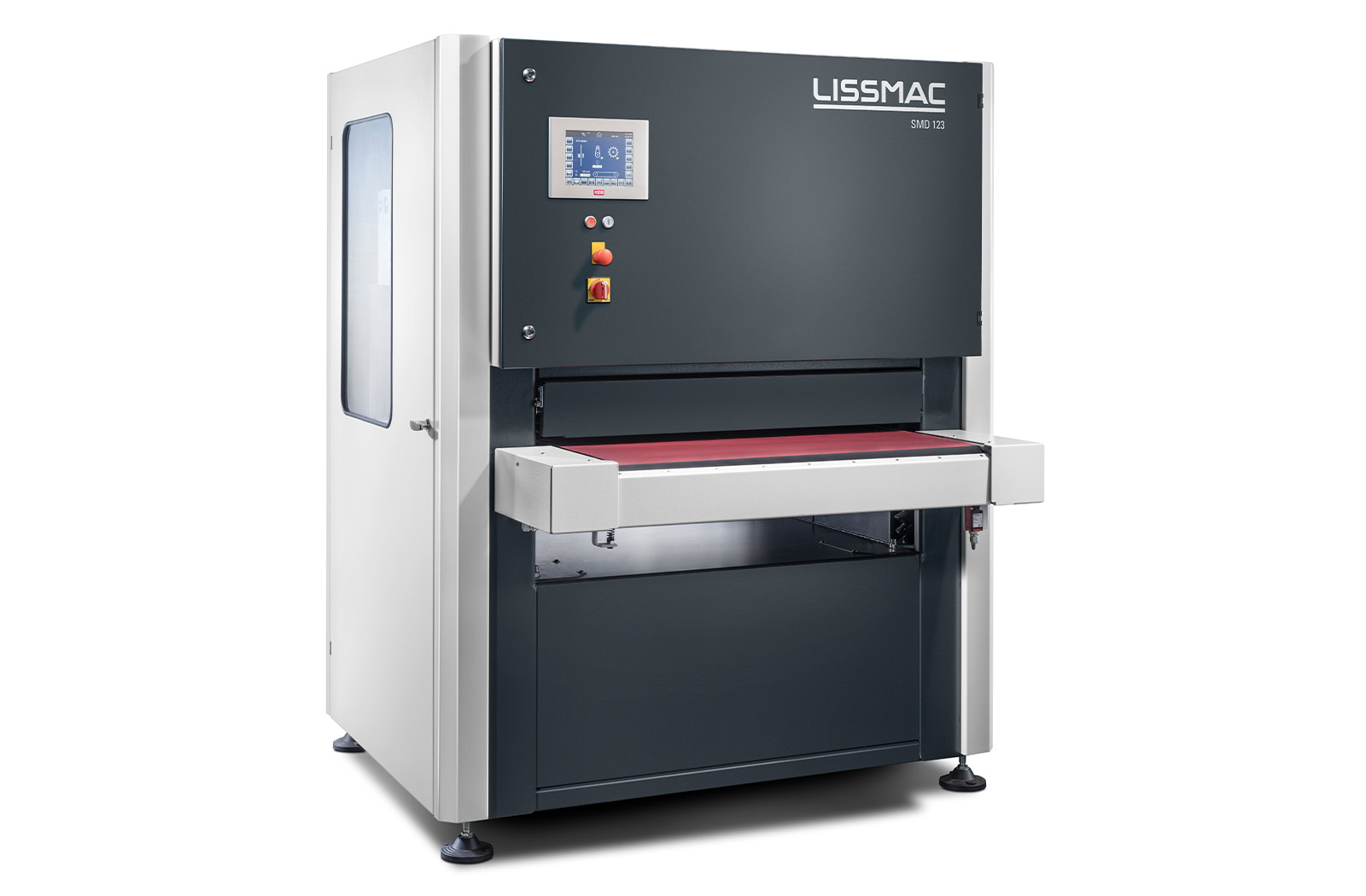

SMD 123 RE

Lissmac has developed a 2 head 37" wide dry machine for deburring, grinding, and edge rounding. The SMD 123 RE has a very user-friendly touch screen to operate the machine. The 1st head is a roller drum (R) to remove a vertical burr or impart a grain finish to the surface of the part. The deburring and edge rounding machine SMD deburrs and grinds the edges of punched, laser cut, and high-definition plasma cut sheet metal parts. Pieces up to a material thickness of 2 inches will be edge rounded on all inner and outer contours in a single side process.

Features

• Pneumatic tensioning of the abrasive belt
• Tracking of the abrasive belt via photo optic
• Each working module can be individually engaged and adjusted according to your application.
• Abrasive belt changes quickly and easily on the left-hand side

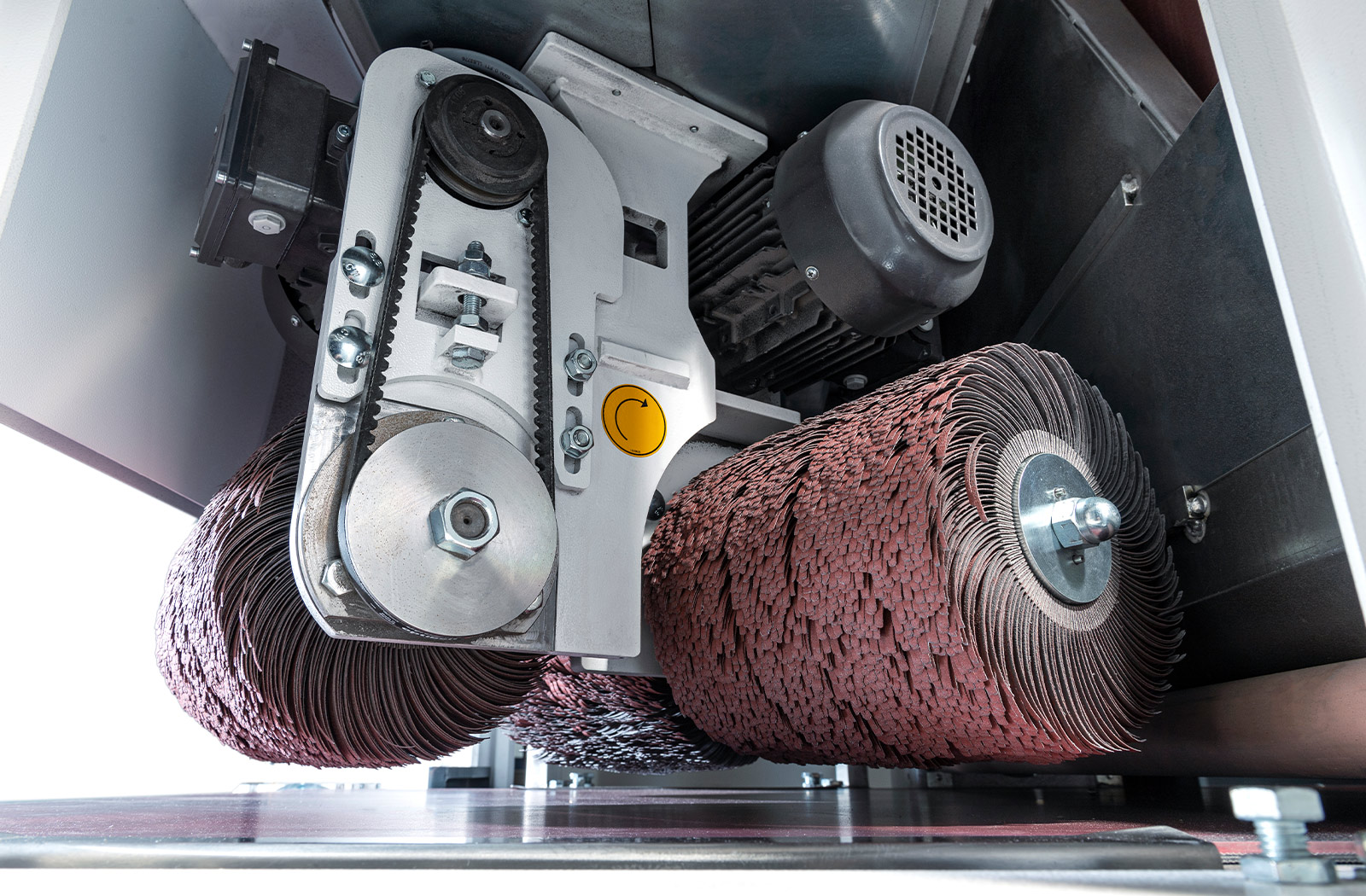

• 2 Rotating E-units with a total of 4 abrasive flap wheels
• Easy manual adjustment for the R- and E-units
• Rubberized pressure rollers before and behind each head to hold the parts
• Sheet thickness, conveyor belt speed and cutting speed of the R-head via touch screen

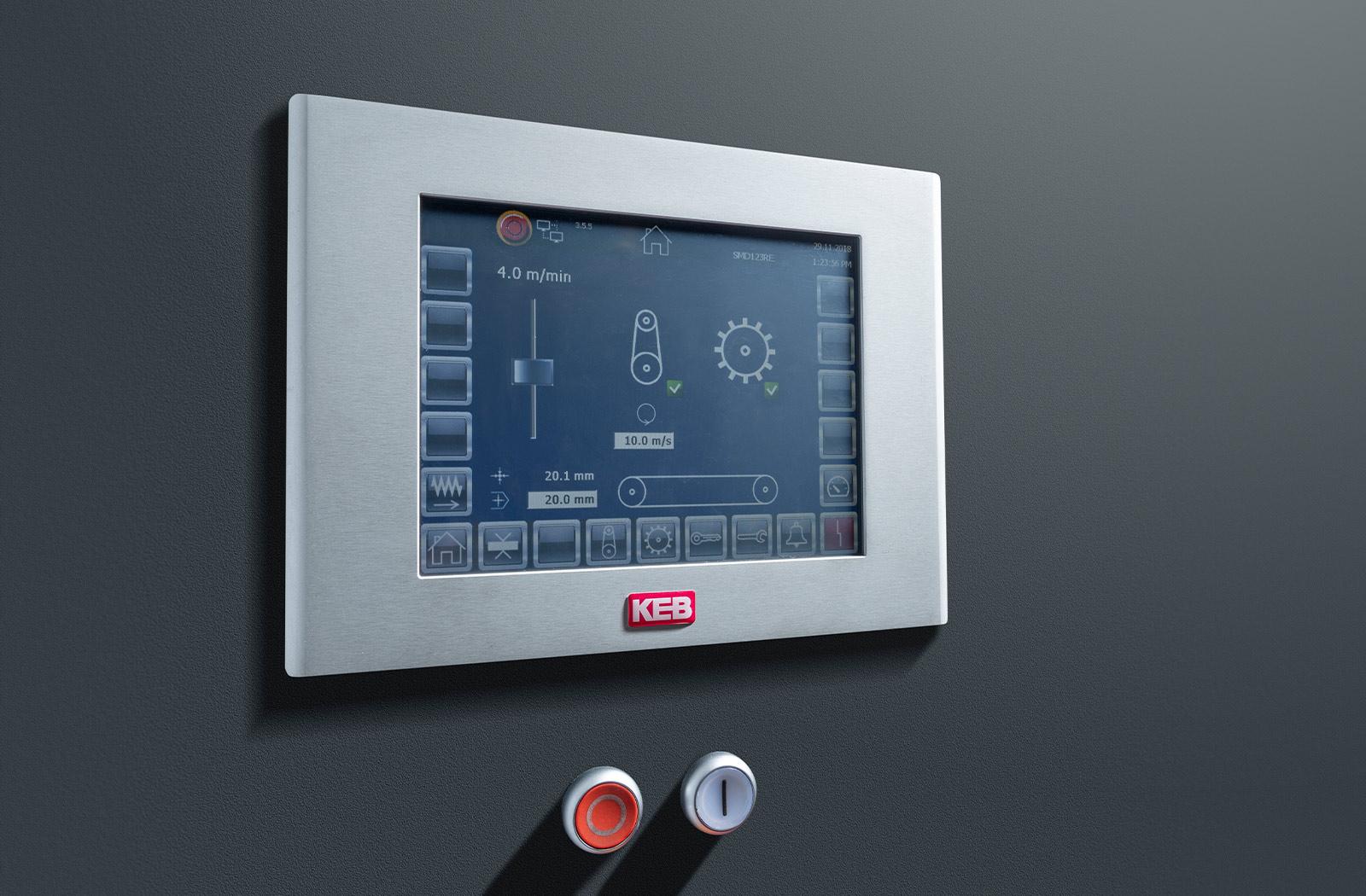

• Colored KEB 8.4” touch screen
• Remote maintenance by plugging in an ethernet connection
• Internal storage for programs - export by USB drive
• Wet conveyor belt cleaning station to optimize the grip of the parts

Specifications
