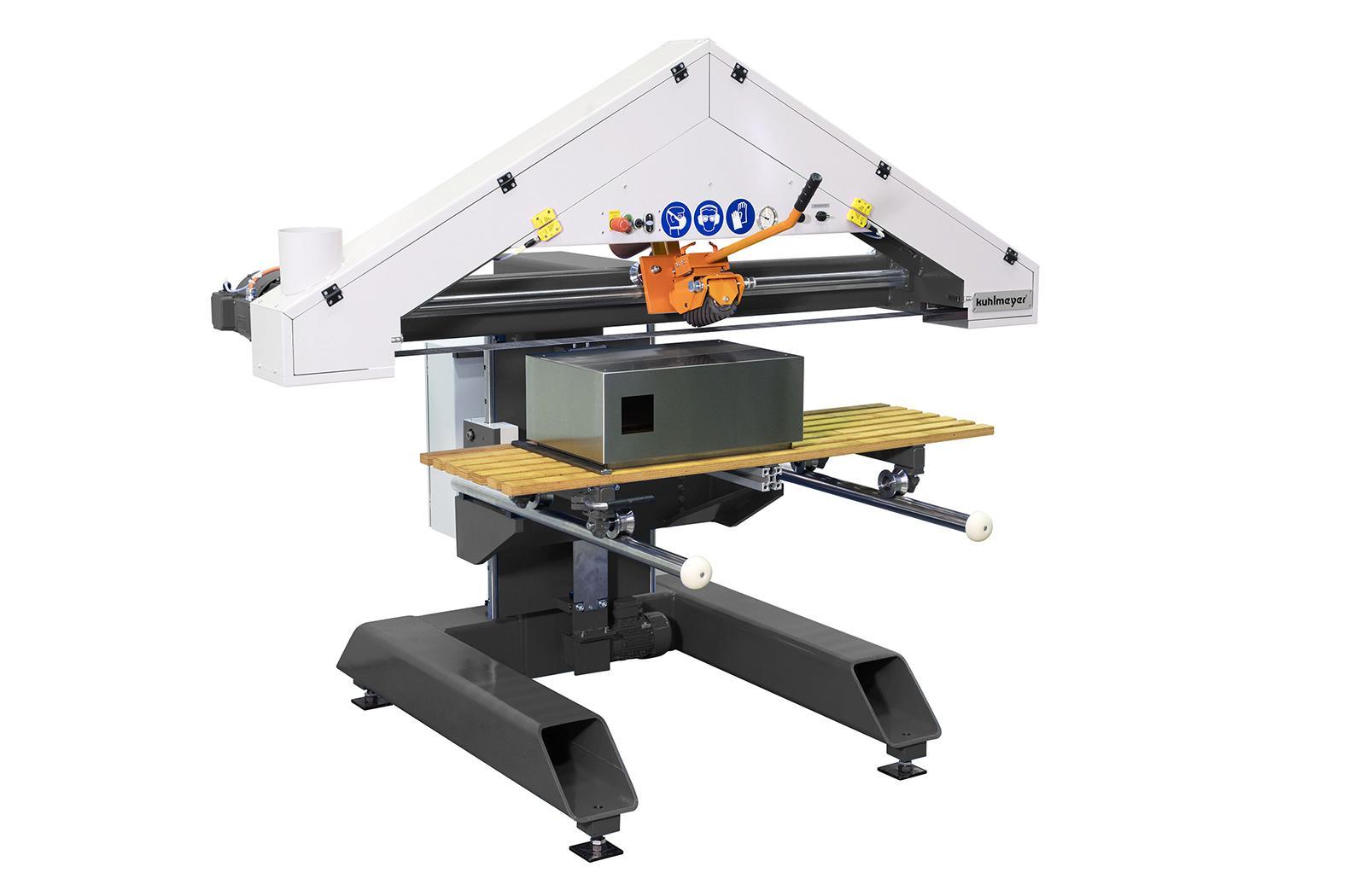

Kuhlmeyer EBSC SINGLE BELT GRINDING MACHINE
The EBS-Compact is designed for grinding welded edges, corners and surfaces of smaller components,
By easy replacement of the grinding belt the machine is rapidly changed between roughing and finishing process.
The compact design allows the integration of the machine into existing production areas.
The main advantage is the easy and ergonomic grinding with the maximum quality by the precise Kuhlmeyer technology and experience.
Features
Quick changing of abrasive belts for roughing and finishing.
Triangular configuration for excellent access to and visibility of the working area.
Adjustable pneumatic belt tensioning.
Adjustable grinding belt speed.
Swivel grinding belt up to 90° with belt centering.
Self-centering of grinding belt.
Easy opening of belt cover.
Smooth moving prism rollers for table, contact pressure tools and table height adjustment.
Enhanced safety by safety switches and E-Stop-button.
Free swiveling pressure tool.
Pressure roller adaptable with a quick coupling.
Table height adjustment with soft start ramp.
Specifications
| Table Size | 1500 x 500 mm, (20" x 60") |
| Workpiece Max. Weight | 30 kg, (66 lbs.) |
| Table Movement Horizontal (Manual) | 530 mm, (20") |
| Vertical Lifter Stroke (Motorized) | 480 mm, (19") |
| Footprint Dimensions | 2400 x 1850 x 2000 mm, (94"x73"x79") |
| Extraction Flange & Volume ø | 150 mm / 1500 m³/h, (6" / 5 cu ft/h) |
| Adjustable belt speed | 4 - 25 m/s, (82 f/s) |
| Grinding belt dimensions | 100 x 4745 mm, (4"x 189") |
