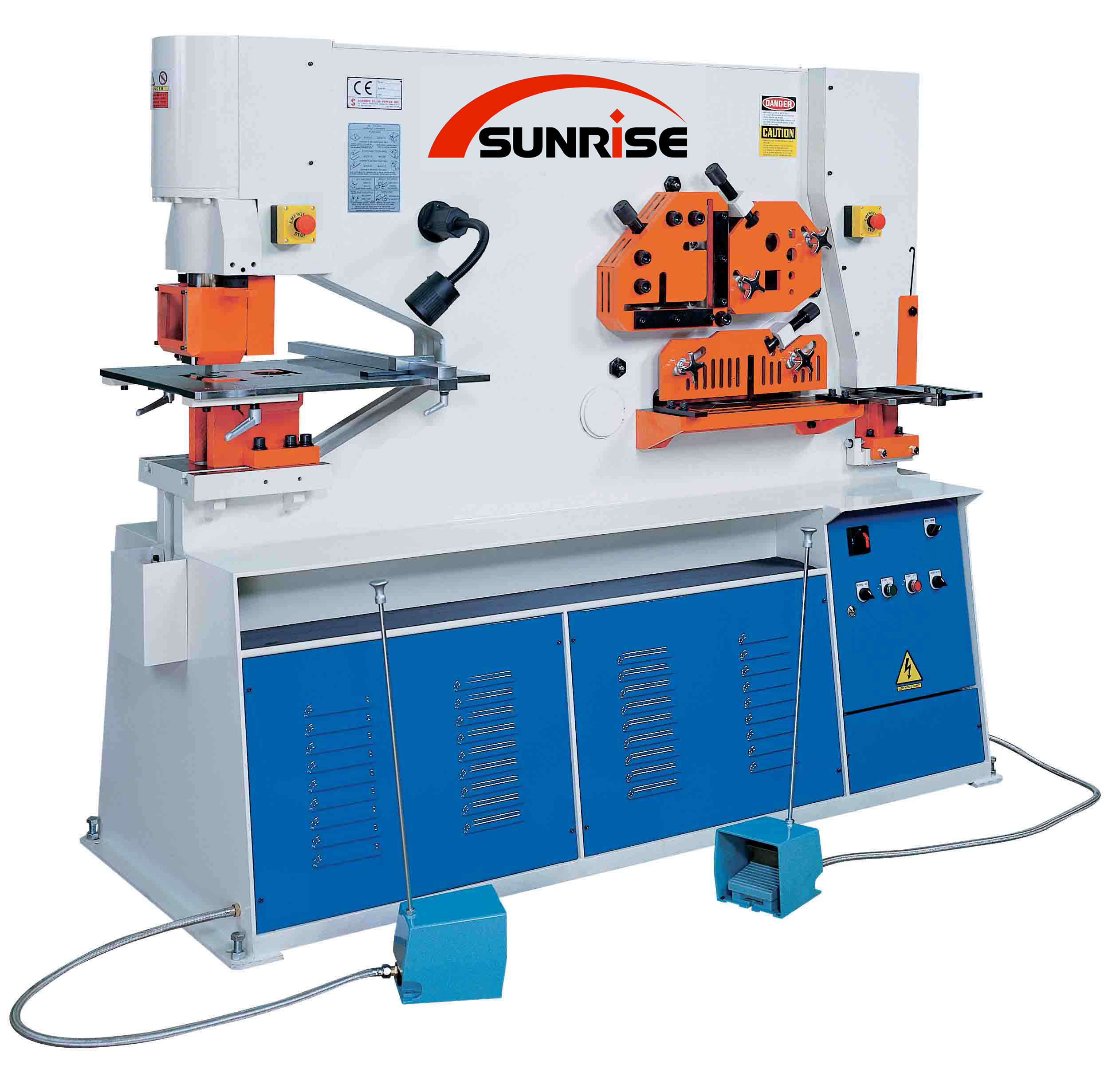

SUNRISE Model IW Dual-Cylinder Ironworkers

SUNRISE has installed thousands of machines in the United States and over 15,000 in more than 50 countries around the world.
SUNRISE is ISO-9001 certified, and all SUNRISE products meet all CE safety requirements and regulations.
Total customer satisfaction is the number one goal.

SUNRISE Model IW Dual-Cylinder Ironworkers range in capacities from 66 Tons to 180 Tons.
All Model IW Ironworkers from SUNRISE feature High-Speed cylinders with two-position foot pedals.
The dual-cylinder "IW" series ironworkers are built with the SUNRISE tradition of well engineered products for high power, quality and reliability at an incredible price.
SUNRISE ironworkers have two-stage foot pedals so separate punching and shearing operations can be safely performed simultaneously without interference.
The low pressure setting for tool change and spotting provides maximum operator safety. The long cylinder stroke and deep throat enable mounting a wide range of special equipment.

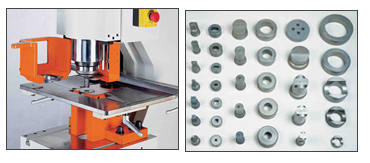

The large punching base with the "T-slot" provides a solid base for securing the punch tooling, as well as a wide range of optional and custom designed tooling.

The "Efficiency Package" is STANDARD on all SUNRISE Ironworkers!

• 40" Touch-and-Go Electric Back Gauge

• Punch Gauge Table with Gauge bar on Ball Bearings

• Notcher Gauge Table

• Magnetic-Base Work Light

• Starter Set of 11 Punches & Dies

• Reversible Die Block for up to 2" diameter hole capacity

2 Year Warranty Included On All SUNRISE Machines

Specifications
