Sunrise K Series Single Cylinder Ironworkers
The Sunrise K Series
The Sunrise K is a compact Ironworker that comes complete with a notcher.
Introduced in 2004, the K-Series is a specially designed Ironworker with vertical movement on all stations.
The entire main slide moves in an up and down motion to provide optimum results for punching, shearing, notching and bending without other moving parts.
Hydraulic shearing hold-downs are STANDARD on Models 66K, 66KB and 95KD.
The very fast stroke speed greatly improves the efficiency.
These models incorporate versatility, efficiency, accuracy and ease of use at an excellent price.
The frame recess below the punching station allows punching on the flange of large size channel or beam profiles.
The “Efficiency Package” is STANDARD on all SUNRISE Punching Machines!
-
Punch Gauge Table with Gauge bar
-
Notcher Gauge Table with gauge bars
-
40″ Electric Touch-and-Cut Back Gauge
-
Magnetic-Base LED Work Light
-
Starter Set of 11 Punches & Dies
-
Reversible Die Block for up to 2″ diameter hole capacity (on dual-cylinder machines)
-
Complete tool kit with Manual and Parts Drawings including new HiRes Start-Up Video!
Specifications
|
Model |
Tons |
Throat |
Punch Capacity |
Angle Shear |
Plate Shear |
Notcher |
Motor HP |
Net Weight |
Price |
|---|---|---|---|---|---|---|---|---|---|
|
IW-50K |
50 |
6/1/2″ |
1-½” in 5/16″ ¾“ in ⅝” |
3″ x 3″ x 5/16″ |
12″ x ⅜” |
2″ x 3-½” in 1/4″ |
5 |
1,875 |
$11,995 |
|
IW-66K |
66 |
8″ |
1-½”” in 7/16″ 7/8″ in ¾“ |
4″ x 4″ x ⅜” |
14″ x ⅝” |
2″ x 3-½” in 5/16″ |
7.5 |
2,625 |
$16,500 |
|

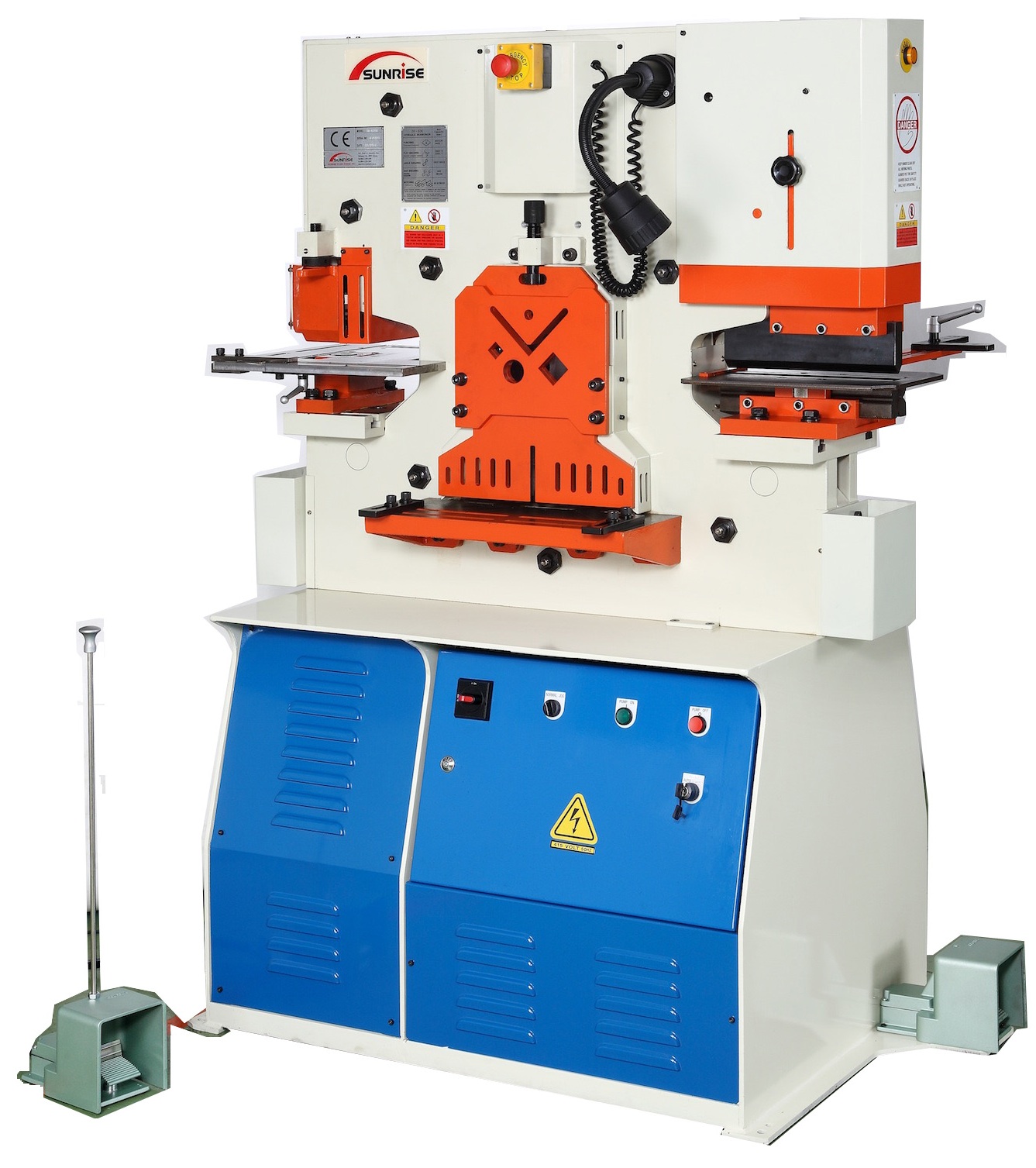

IW-66KB |
66 |
8″ |
1-½”” in 7/16″ 7/8″ in ¾“ |
4″ x 4″ x ⅜” |
14″ x ⅝” |
12″ Press Brake Die and Gauge System |
7.5 |
2,725 |
$17,435 |
|
IW-95KD |
95 |
16″ |
2″ in ½“ 1″ in ⅞” |
5″ x 5″ x ½” |
16″ x ¾” |
2″-½” x 3-½” in ½” |
10 |
6,075 |
$30,745 |
