SUNRISE Hydraulic Horizontal Benders

The SUNRISE HBM hydraulic bending machines are a valuable addition to the SUNRISE product line of high quality and reliable hydraulic metal working machines. A wide range of tooling is available for different bending operations. Custom tooling is also available. The HBM machines feature a direct cylinder to tool connection allowing full bending force in the middle of the tooling for maximum performance and reliability.

Base price

Description

Sunrise Horizontal Benders

The hydraulic bending machine from SUNRISE offers a high quality and reliable hydraulic metal working machine.
A wide range of tooling is available for different bending operations. Custom tooling is also available.

SUNRISE horizontal bending machines feature:

Excellent repeatability of stroke with an accuracy of +- 0.004″ with Digital Linear Encoder and Proximity Sensors.

Programmable touch screen controller – Standard.

Name brand electric and hydraulic components ensure machine reliability.

CNC machined one-piece solid table design.

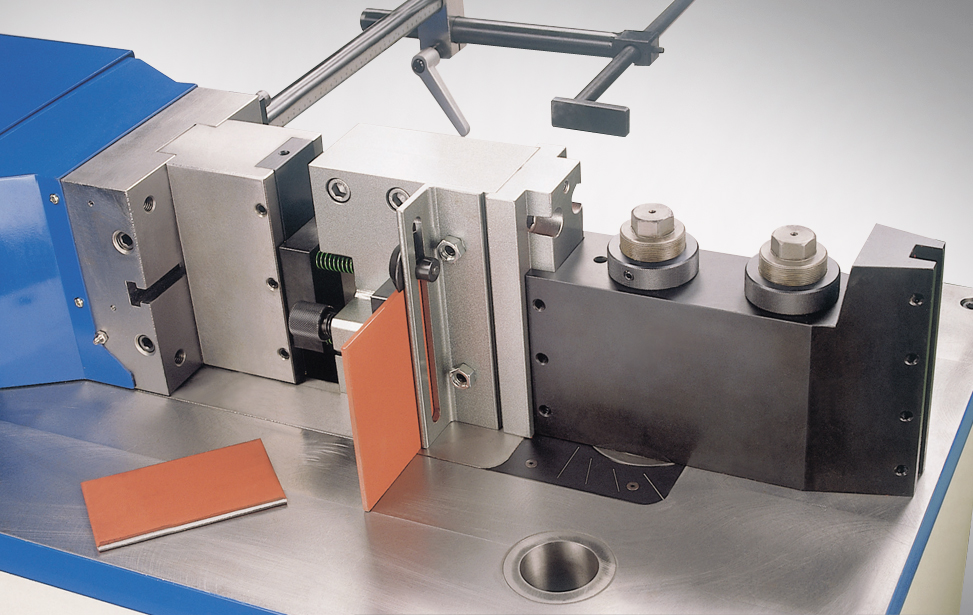

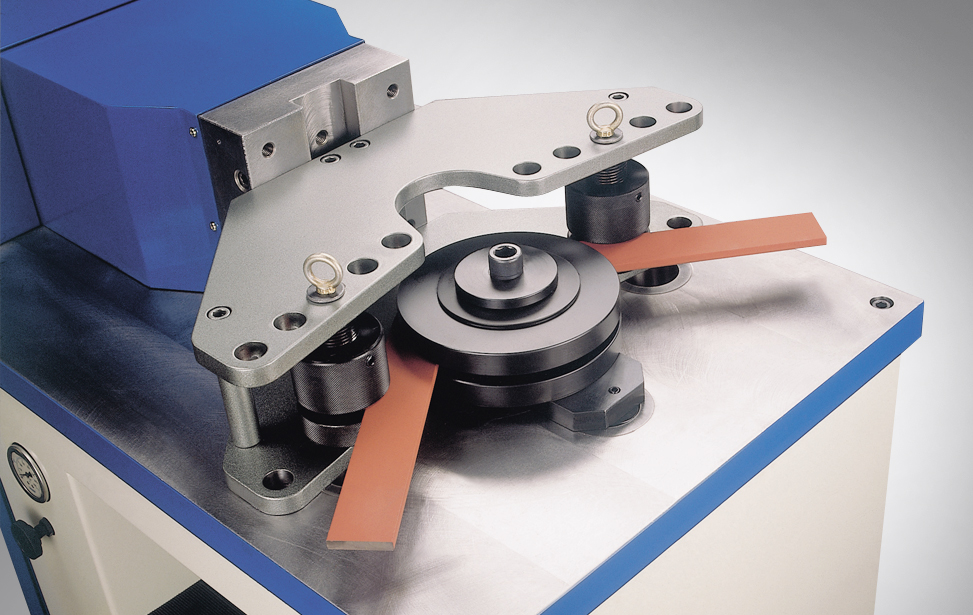

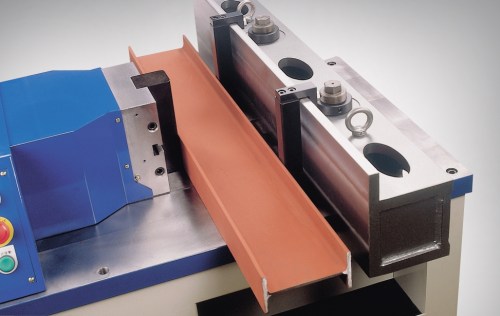

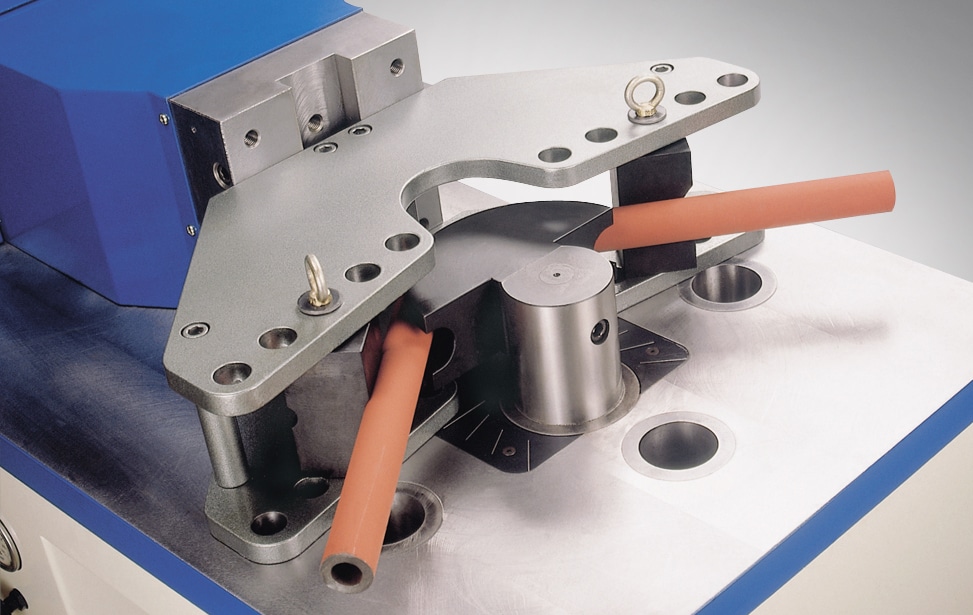

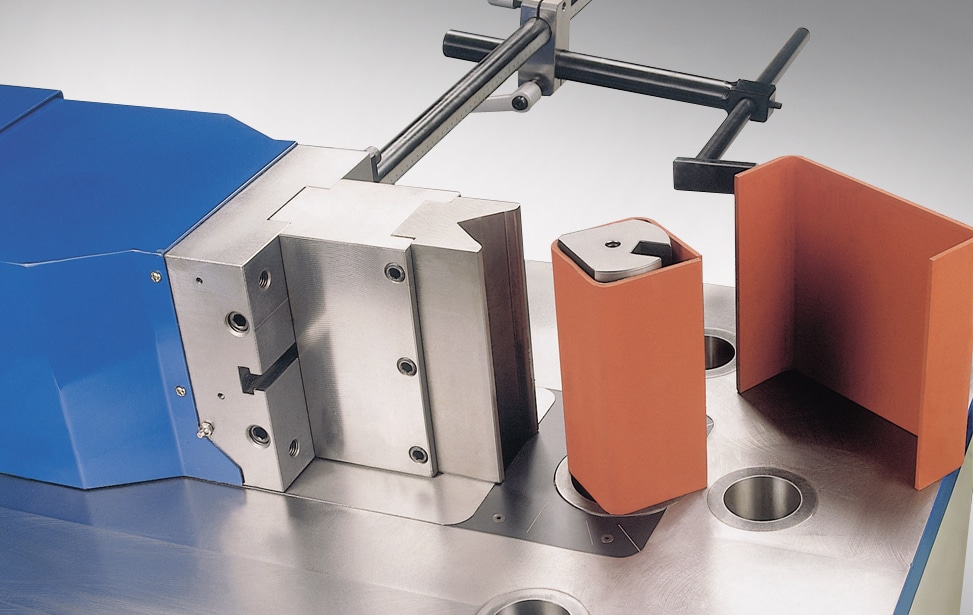

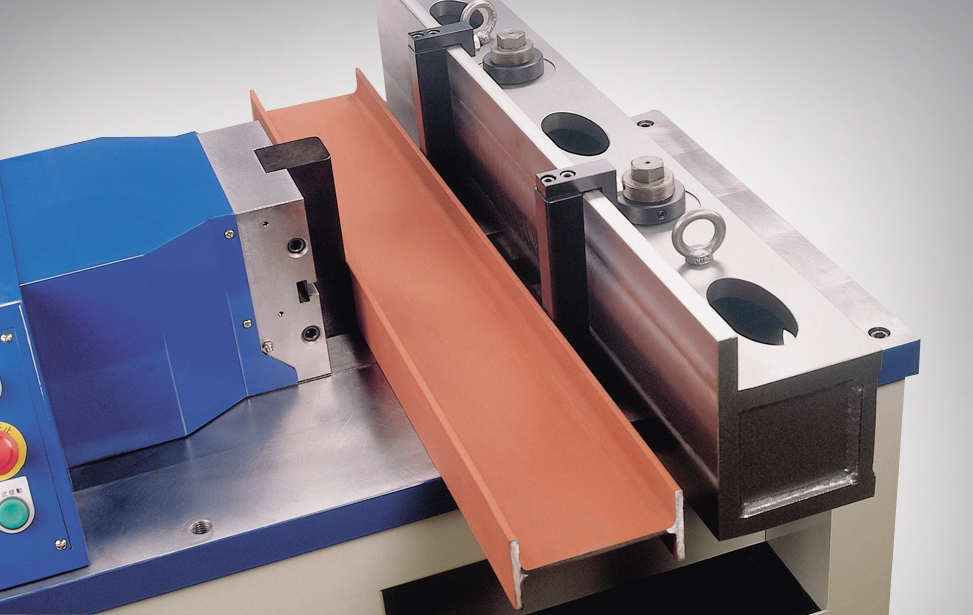

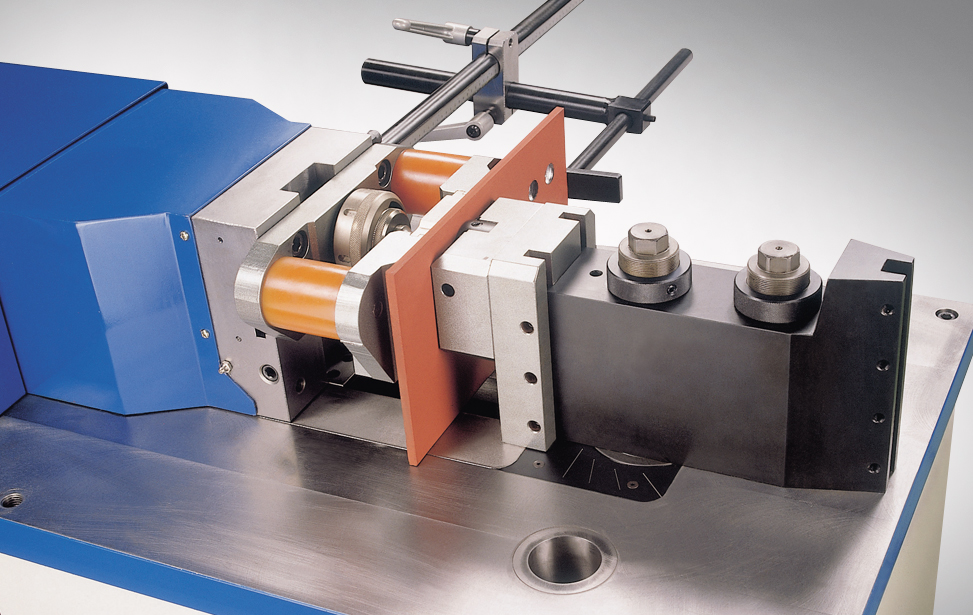

A wide range of standard and custom tooling is available.

Manual back gauge is included for accurate positioning.

Both HBM models feature a programmable touch-screen controller with 50 program memory standard.

Trilogy Machinery offers 100% factory authorized service and support as well as a full stock of spare parts and accessories from their Baltimore location.

Sunrise CNC

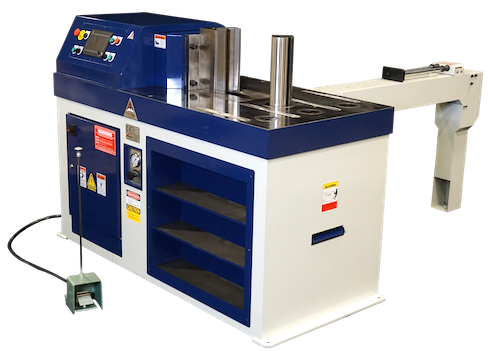

The Optional SUNRISE Omron 5" touchscreen CNC backgauge extends the accuracy and efficiency of the HBM series horizontal bending machines.

The CNC backgauge positional range is 40" or optional 80" and is accurate to ±0.004″ and when combined with the digitally controlled cylinder travel, achieves complex bending work with ease.

The backguage can be programmed to slightly retract immediately before bending to prevent damage from material movement.

Control memory can store up to 200 programs with 10 bends each for quick and easy programming of a wide variety of jobs.

Specifications

Model	Capacity	Force	Forward Speed	Stroke	Working Height	Motor HP	Weight
HBM-45 – Manual	8″ x 1/2″	45 Tons	1.5″/ Sec	10″	37″	5	2,275
HBM-45	8″ x 1/2″	45 Tons	1.5″/ Sec	10″	37″	5	2,275
HBM-82	12" x 1/2"	82 Tons	1.5″/ Sec	14″	37.5″	7.5	4,575
