The Sunrise CNC Ironworker

The semi-automatic CNC positioning tables from SUNRISE are plate and angle positioning systems with user friendly interfaces.
The CNC positioning table is available as a factory-installed option on any Ironworker or Punching Machine machine with a 20" or larger throat depth.
The operation and programming are CNC controlled using a pendant mounted OMRON Control featuring simple programming and a virtually indestructible design.
The operator simply positions the plate against the CNC-controlled X and Y stops and initiates the punch program.

The Sunrise iPunch App

NOW INCLUDED WITH ALL NEW SUNRISE CNC MACHINES!

iPunch is going to change the way you think about programming a CNC Ironworker or Punching Machine.
Program you entire layout right from you iPad.
You're in control.
With a 100% touch-enabled interface, you control everything down to the individual hole.
With iPunch, you have the ability to choose the patterns to export.
Simple touch commnds allow access to the library of stored patterns.
Each pattern specifies the dimensions of your part, part name and punches used.
Upload directly to your SUNRISE controller, E-mail or save to a memory card.
Give your operator one list with all the parts, jobs and pieces to process each day - already programmed!

Available Sizes

16" x 40" | 16" x 80" | 16" x 120"
26" x 40" | 26" x 80" | 26" x 120"

Positioning Speed

Up to 590" per Minute Variable Speed

Accuracy

+/- 0.002"

Sunrise ANC System:

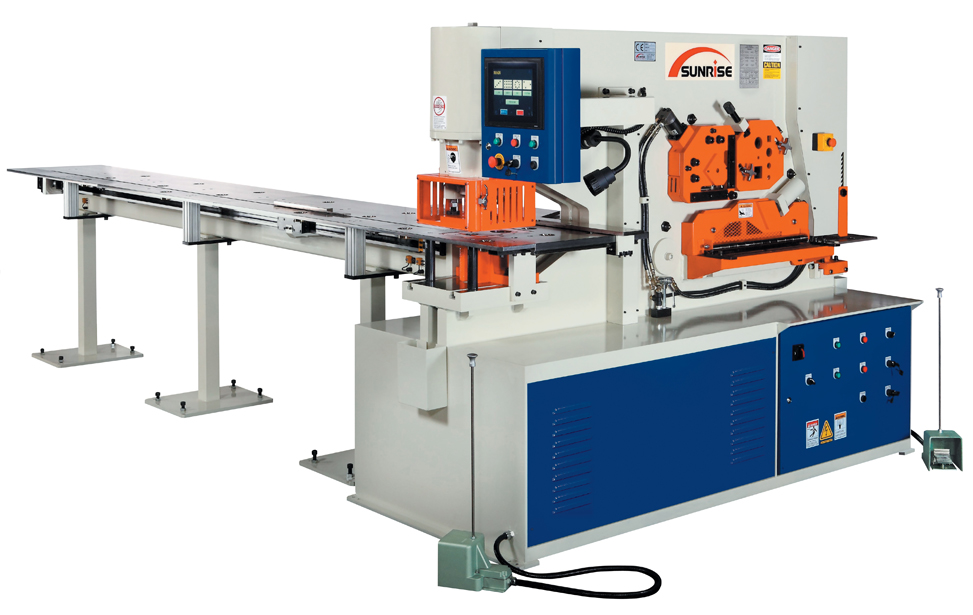

The SUNRISE ANC combines a dual-cylinder ironworker or punching machine with up to a 20' single-axis fully automatic CNC in-feed system for punching flat bar, angle and channel webs.

The servo-driven rack and pinion guide system features Swiss-made GÜDEL components, a world leading supplier of automation.

The highly precise components provide +- 0.004" accuracy, high repeatability and high efficiency due in part to very low friction, vibration and noise while running under heavy loads at full operating speeds of up to 590"/minute.

The standard 7" touch-screen controller is podium mounted for easy placement according to job needs and features pre-set patterns making programming a simple task.

The SUNRISE ANC features a hydraulic punch stripper as well as pneumatic material clamping for fully automatic production. A specially designed in-feed roller table is included for full support of the material as well as specially made strippers and punching acces­sories for processing a wide variety of material.

The SUNRISE ANC is expandable to a full 20' of in-feed and can be coupled with a two-axis system for semi-automatic movement, allowing an operator full control over plate positioning and hole placement.
