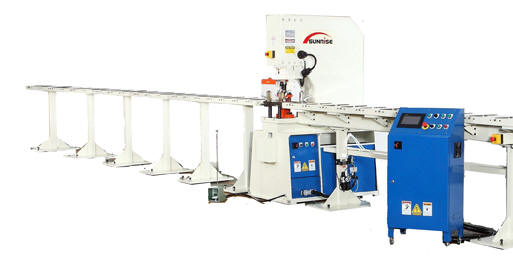

SUNRISE ANC AUTOMATIC SINGLE AXIS PUNCH SYSTEM

CNC In-Feed For Flats, Angles & Channel Webs

• Rack & Pinion Drive - 2 Year Parts/Labor Warranty

• Touch- Screen Control

• Pnuematic Clamps / Hydraulic Stripper

• The SUNRISE ANC combines a punching machine in tonnages up to 220 tons.

• The main frame of the ANC is a heavily proportioned machined structural steel tube that provides unmatched rigidity and quality, yet offers simple set-up, adjustment and maintenance.

• The servo-driven rack and pinion guide system features Swiss-made GÜDEL components, a world leading supplier of automation.

• The precise components provide +- 0.004" accuracy, high repeatability and high efficiency due in part to very low friction, vibration and noise while running under heavy loads at full operating speeds of up to 590"/minute.

• The 7" touch-screen controller is podium mounted for easy placement according to job needs and features pre-set patterns making programming a simple task.

• The SUNRISE ANC features a hydraulic punch stripper as well as pneumatic material clamping for fully automatic production.

• A specially designed in-feed roller table is included for full support of the material

• The SUNRISE ANC is expandable to a full 20' of in-feed.
