Fast and Economical Connection

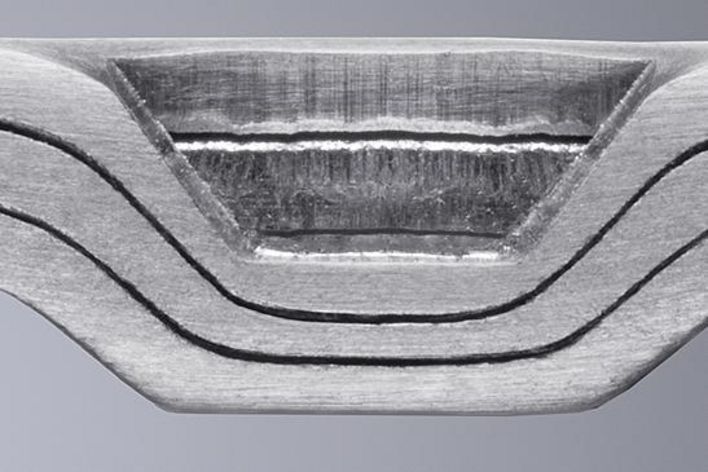

Joining is the simplest and most cost-effective way of connecting two or more metal parts. With the TruTool TF 350 you can produce a form-fitting material connection with joints that are easy to reproduce using cold forming. Whether the workpieces are coated or uncoated is irrelevant. The TruTool TF 350 joins overall material thicknesses of 0.030" to maximum of .157". The result is a long-lasting connection in one operation, without additional connecting elements. With the clinching process, the sheets of metal to be joined are placed on top of each other. Then the tool cuts a strip into the sheets in a combined punching and forming process. A form-fitting and corrosion-resistant connection joins the top and lower sheets as the materials flow into one another. The connection point solidifies resulting in a permanent connection without additional tools or heat.

No Fasteners

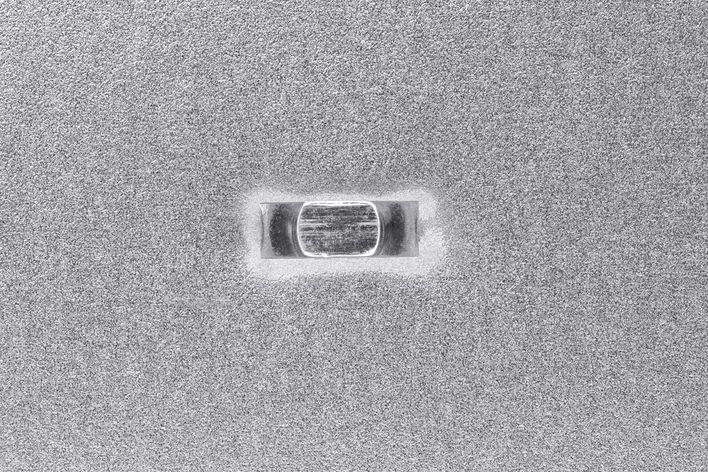

The rectangular joining point appears as a shallow raised spot. This means that you have no interference contour, such as in the case of edges that you find with screws and rivets. The simple handling means no fasteners are required and the machine is quickly ready for use. The TruTool TF 350 can also be adapted to the desired application quickly and easily. Simply choose the relevant tool.

Perfect Surface in One Operation

The joining quality does not depend on whether surfaces are coated or uncoated.

120 Joining Points per Minute

Simple single stroke activation with consistent strength and connection quality.

Contact us for free on-site demonstrations
