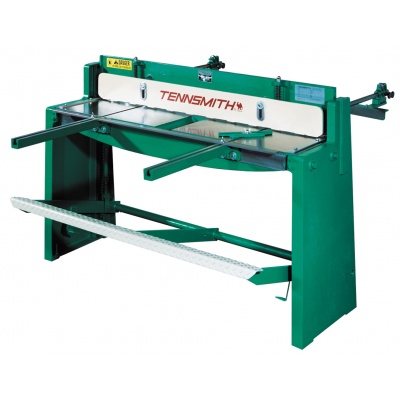

Tennsmith's foot squaring shears offer precision shearing and rugged construction at an affordable price. Available in 37" and 52" lengths, the shear frame, bed and cutter head assemblies are constructed of heavy-duty cast iron. The shear bed is machined and then surface ground to precision tolerances to ensure an accurate working surface. These shears feature triaction, high-carbon highchromium (HCHC) steel blades. Both the upper and lower blades have a 2-degree edge relief and the lower blade has an additional 1-degree face relief for maximum material penetration with minimum effort. Triaction blades help prevent material movement while shearing, prolonging blade life. TENNSMITH shears have the most complete adjustment features of any sheet metal shear on the market. The lower shear blade is bedadjusting and the upper blade is adjustable by means of a truss bar on the cutter head. The spring-activated holddown feet clamp the work piece securely in place and are easily adjustable to compensate holding pressure for light or heavy gauge material. There is ample clearance between the holddown feet and shear blades to allow good operator vision for line-of-sight cutting. The standard, double-locking back gauge, which features embossed scales and vernier wheels for fine adjustment, gives highly accurate readings.

Features

• Shear frame , bed and cutter head constructed of heavy-duty cast iron.
• High chromium steel cutting blades.
• Upper and lower shear blades with unique adjustment features.
• Double-locking back gauge with embossed scales and vernier wheels for fine adjustment standard.
• 3-Year warranty by Tennsmith.

Description

37" or 52" wide 16ga capacity floor model foot-squaring shears complete with hi-carbon hi-chrome steel blades, double locking back gauge with embossed scales and vernier wheels for fine adjustment
