Tennsmith's MSE Series mechanical shears utilize a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance.
The MSE Series come standard with four-edge, high carbon, high chrome blades, a self-leveling hold down bar with neoprene insert, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table, dual inch/metric inlaid bed scales and non-metallic gibs. The MSE Series also incorporates the unique front operated 2x-F back gauge system. This system allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only two rotations of the handle. Capacities of the shears are 16-gauge mild steel, 22-gauge stainless with 73 or 121 cutting lengths and speeds of 40 strokes per minute.

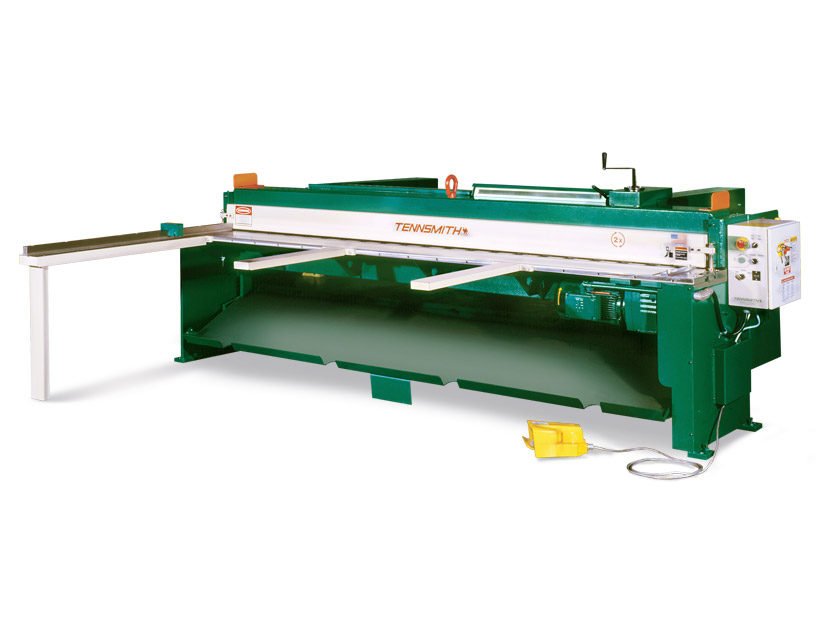

The MSE1016 Series is available in the following configurations: MSE1016-R, MSE1016-F and MSE1016-FC.
The MSE1016-R shear is standard in a "Performance Package-R" configuration. The Performance Package includes: a five foot squaring arm, a pair of front support arms, rear material return air operated sheet support system, and parts counter.
The MSE1016-F shear is standard in a "Performance Package-F" configuration. The Performance Package includes: a four foot squaring arm, a pair of front support arms, front material return air operated sheet support system, parts counter.
The MSE1016-FC includes all the features of the MSE1016-F, but also includes a front return material cart as standard. The material cart allows for sheared materials to be moved from the shear to other areas in the shop without restacking.
Numerous Options are available for the MSE Series. Please contact Tennsmith for further details.
Available options: Air-operated sheet support system, five-foot squaring arm, front support arms, protractor and stroke counter

The MSE Series features:

• Maximum shearing lengths: 6' or 10'
• Maximum shearing capacity (mind steel) of: 16 gauge
• Maximum shearing capacity (stainless steel) of: 20 gauge
• Back gauge range of: 30"
• 40 full-length strokes per minute
• A 3 hp, 230/240V, 3-phase, 60Hz motor
