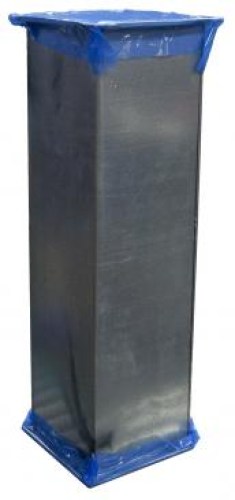

Using this plastic cap on all unfinished ends helps prevent moisture, dirt and dust particles and other construction debris from contaminating the clean inside airstream of the ductwork.

For most shops, the TDC-FAM will achieve a less than one year payback through significantly less material handling, better organization and space utilization in the film application process.

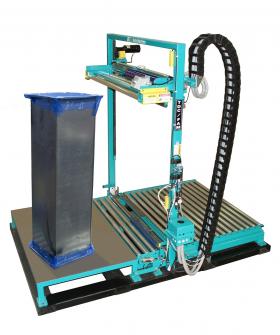

Features:

• Subject to large duct material handling - one man operation
• Wraps both duct ends simultaneously and conforms to the shape of the duct
• Rods square up the duct and apply film to leading edge of duct on both top and bottom
• Fully automated film cut-off system using precision sensors and timers
• Handles many types of duct flanges – TDC, TDF and other rollformed and slip-on 4-bolt connectors
• Upper head quickly and easily adjusts via electric motor to accommodate 18" to 60" duct lengths.
• Easy load upper and lower film roll supports quickly adjust from 24" to 48"
• The thin scrolled knife blades are pneumatically powered for a fast smooth action and are hardened for long life and clean cuts
• The upper and lower duct wrap film rolls are core supported from each roll end by a slide-in mount for easy loading
