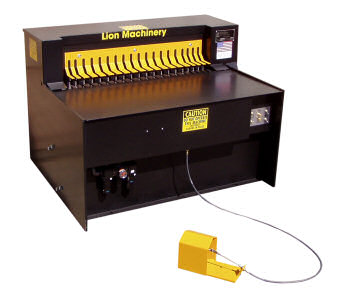

Lion Cleat Benders

When your sheet metal job calls for high-speed folding or bending of drive cleat edges, standing seams, hems, drip edges s-cleats or right angles, the Lion Cleatfolder or Cleatbender roars into action.

These solid tools are built to last for thousands of jobs and years of hard work and abuse.

Model 1836-3-3
3 Position back gauge with toggle switch, preset at I", 5/8" and 7/16" with 3 bend angles preset
at 180° 90° and 45° (other settings available)

Model 1836-2-3
2 Position back gauge with toggle switch, preset at I", 5/8" and 7/16" with
3 bend angles preset at 180° 90° and 45° (other settings available)

Model 1836-1-3
1 Position back gauge, preset at I", 5/8" and 7/16" with
3 bend angles preset at 180° 90° and 45° (other settings available)

Model 1836-0
Cleatbender Only, Fixed back guage, preset at 7/16" or 1/2" with a bend angle preset at 180°

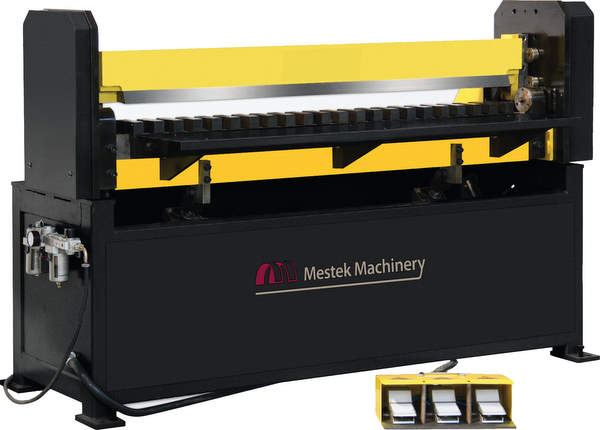

Lion Pneumatic Wrap Brake

Foot Pedal Control
Pneumatic drive folding beam
Dial - adjustable bend angle 0-90
Safety interlock controls
Maintenance - free bearing & guides
Automatic tDC/TDF notch locator
Rugged welded steel contruction

Max Bend Length: 60"

Max Material Thickness
16 gauge (1.6 mm)

Air Supply: 11 CFM of Clean/Dry @ 100 PSI, (Not to exceed 120 PSI)

Min Wrap Duct Size: 8 3/4" x 8 3/4"
